SPECS
| MODEL | MAST | FUSELAGE | FRONT WING | REAR WING | ART CODE |
|---|---|---|---|---|---|

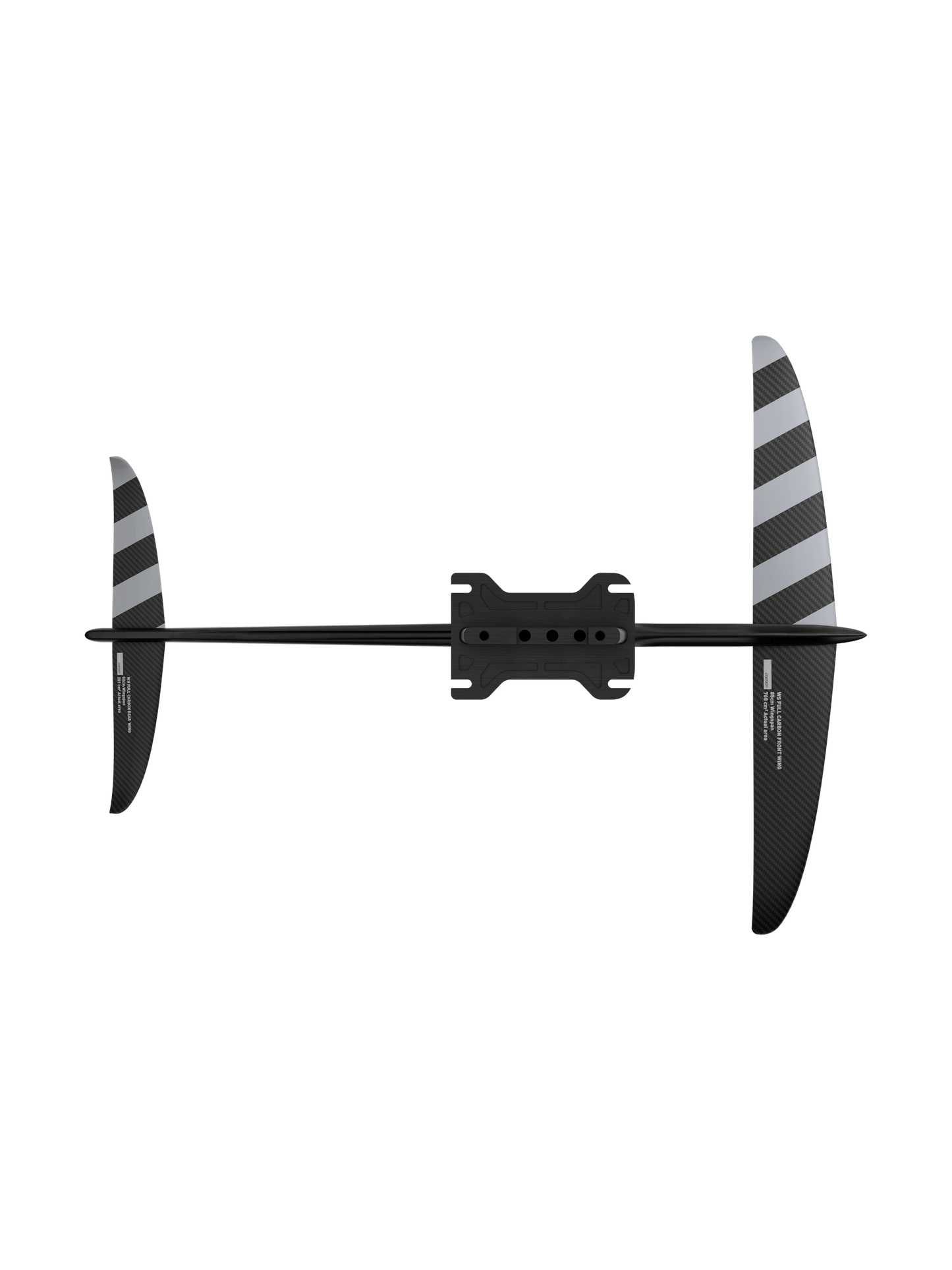

| DYNAMIC WS 768 FOIL SET Y26 | 85 cm | 110 cm | Wing span 85 cms / wing area 768 cm² | Wing span 50 cms / wing area 281 cm² | 26DWFS768S |
TECHNOLOGY
In order to increase both lateral and torsional stiffness of the ALU mast, we have redesigned a new mast profile and mould. The new mast now has a maximum thickness of 18mm and its profile is also proportionally thicker towards the trailing edge in order to minimise twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The incorporated top plate is smaller and shorter than the Y25 UNIVERSAL ALU MAST resulting in a lighter weight. The new ALU mast has an unparalleled TWIST of only 2,2 cms, feeling as torsional stiff as a full hi-modulus M40J Carbon mast !!!
FOIL TECH SPECS
MAST
The new wider profile and stiffer Universal ALU mast with integrated plate is the top combination for speed potential and superior control. The new aluminum plate has been optimized in dimension and integrated into the alu mast using new 8 mm diameter screws to obtain a more solid connection. This mast is 30% lighter and stiffer both in flex and torsion, compared to his predecessor. A true innovative foil component that allows you to concentrate on your riding without thinking about losing control. A must for an improved and precise foil ride.
FRONT AND REAR WINGS LAYUP
WS carbon front and rear wings designed for wind foiling at a high speed range. Those full carbon wings are the best compromise of strength, durability and lightweight available today. The new connections areas between the wings and fuselage are built very solid and with 8 mm diameter Torx screws for maximum stiffness.
REMOVABLE PLATE CONNECTOR / WING CONNECTION
The new Universal fuselage has an extra wide head area to carry and support super wide wings (up to 120 cms wingspan and 2500 sqcms) and entirely redesigned for maximum lightweight. Its new wider middle and front section design can sustain higher flex pressure and torsion pressure from the input of the mast and front wing and offers an improved level of stiffness. Lighter and stiffer!
MAST FUSELAGE CONNECTION
New 8mm diameter Torx screws for mast, fuselage and wings has improved connectivity to improve in stiffness and for more user friendly assembly / disassembly. The new 6 mm sideways telescope screws secure the fuselage to the mast and avoid any risk of loss.
No more damaged screw heads and threads!
MAST FUSELAGE CONNECTION
The new mast foot adaptor Y26 design is now wider for improved lateral stiffness, securing a “one welded piece“ feeling between fuselage and mast. Hi density Plastic connector/adaptors to avoid oxidation between mast and fuselage connection. 2 x 8mm diameter torx and 2 x 6 mm sideways telescope screws for a reliable, strong and quick connection.
FOIL SET BAG (sold separately)
Our new foil set bag 120 can fit any set and parts of our complete Y26 Hydrofoil collection.
There are velcro attachments that will fit and lock every part inside its padded cover so every component of any size will be secure and not move inside the bag.
