SPECS
| MODEL | MAST | FUSELAGE | FRONT WING | REAR WING | ART CODE |
|---|---|---|---|---|---|

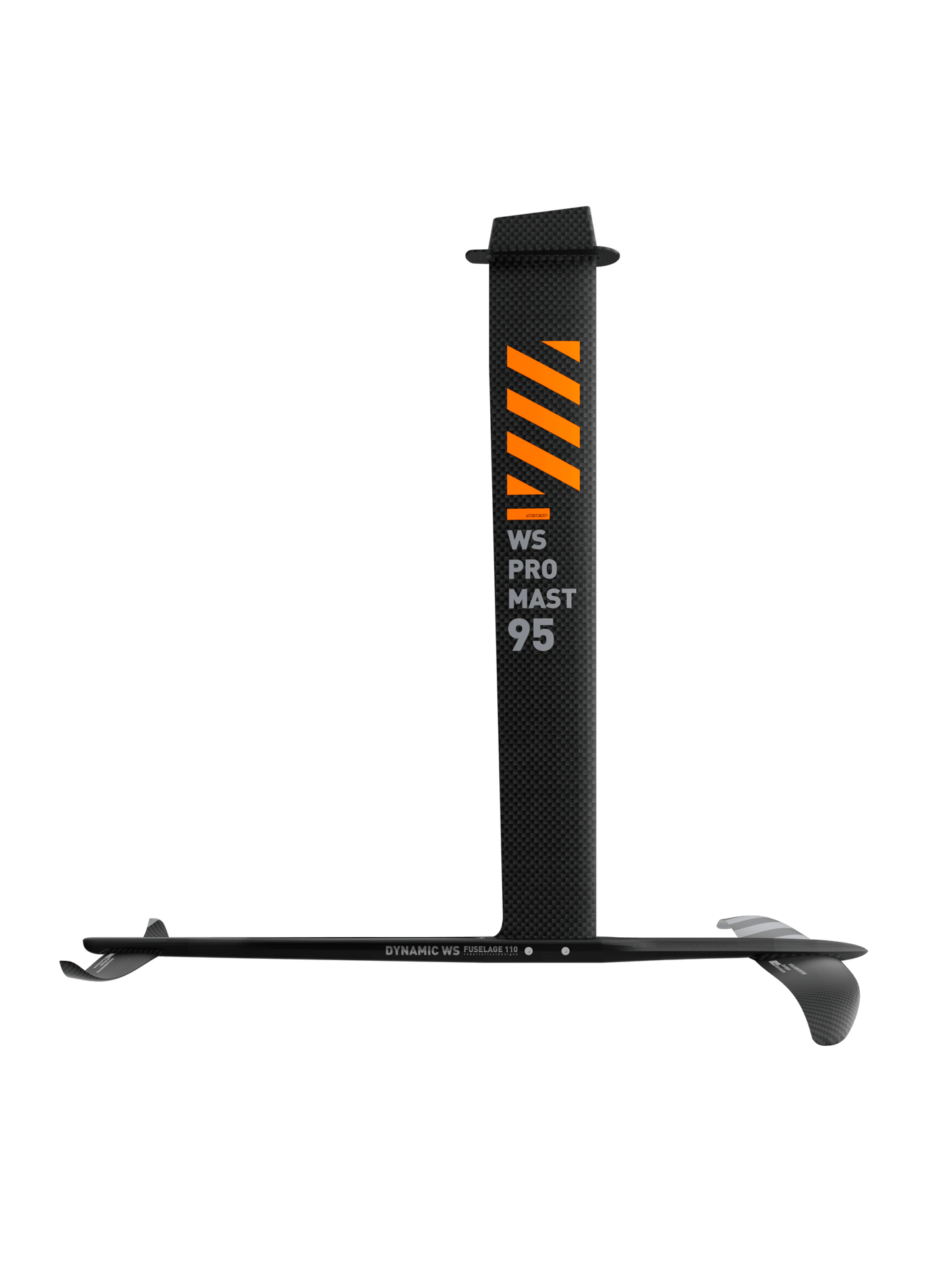

| DYNAMIC PRO WS 768 FOIL SET Y26 | 95 cm | 110 cm | Wing span 85 cms / wing area 768 cm² | Wing span 38 cms / wing area 214 cm² | 26DPWF768S |
TECHNOLOGY
Designed and built to withstand the highest pressure/stresses applied during racing wind foiling. No foam core on this mast. Only 100% TORAY® M40J carbon fibers are used inside.
A unique mix of UD, Tri and Bi-axial fibers are used on this mega stiff jewel to allow the best dynamic response to the huge pressures applied during hi performance windfoiling use. Finished with a woven tape 100 gms/sqmt carbon surface to increase torsional flex all the way to the last layer on the mast. This is the mast to challenge in terms of overall stiffness in the windfoiling world today. Choose quality over weight saving only. Speed is a result of stiffness of the mast not of its weight.
FOIL TECH SPECS
MAST
Special 100% RACING Full Carbon 95 cms mast. Hi pressure/temperature compression moulding, using 100% CARBON M40 fibers layup ONLY.
FRONT AND REAR WINGS LAYUP
WS carbon front and rear wings designed for wind foiling at a high speed range. Those full carbon wings are the best compromise of strength, durability and lightweight available today. The new connections areas between the wings and fuselage are built very solid and with 8 mm diameter Torx screws for maximum stiffness.
REMOVABLE PLATE CONNECTOR / WING CONNECTION
The new Universal fuselage has an extra wide head area to carry and support super wide wings (up to 120 cms wingspan and 2500 sqcms) and entirely redesigned for maximum lightweight. Its new wider middle and front section design can sustain higher flex pressure and torsion pressure from the input of the mast and front wing and offers an improved level of stiffness. Lighter and stiffer!
MAST FUSELAGE CONNECTION
New 8mm diameter Torx screws for mast, fuselage and wings has improved connectivity to improve in stiffness and for more user friendly assembly / disassembly. No more damaged screw heads and threads!
MAST FUSELAGE CONNECTION
The new mast foot adaptor Y26 design is now wider for improved lateral stiffness, securing a “one welded piece“ feeling between fuselage and mast. Hi density Plastic connector/adaptors to avoid oxidation between mast and fuselage connection. 2 x 8mm diameter torx and 2 x 6 mm sideways telescope screws for a reliable, strong and quick connection.
FOIL SET BAG (sold separately)
Our new foil set bag 120 can fit any set and parts of our complete Y26 Hydrofoil collection.
There are velcro attachments that will fit and lock every part inside its padded cover so every component of any size will be secure and not move inside the bag.
