SPECS
| MODEL | MAST | FUSELAGE | FRONT WING | REAR WING | ART CODE |
|---|---|---|---|---|---|

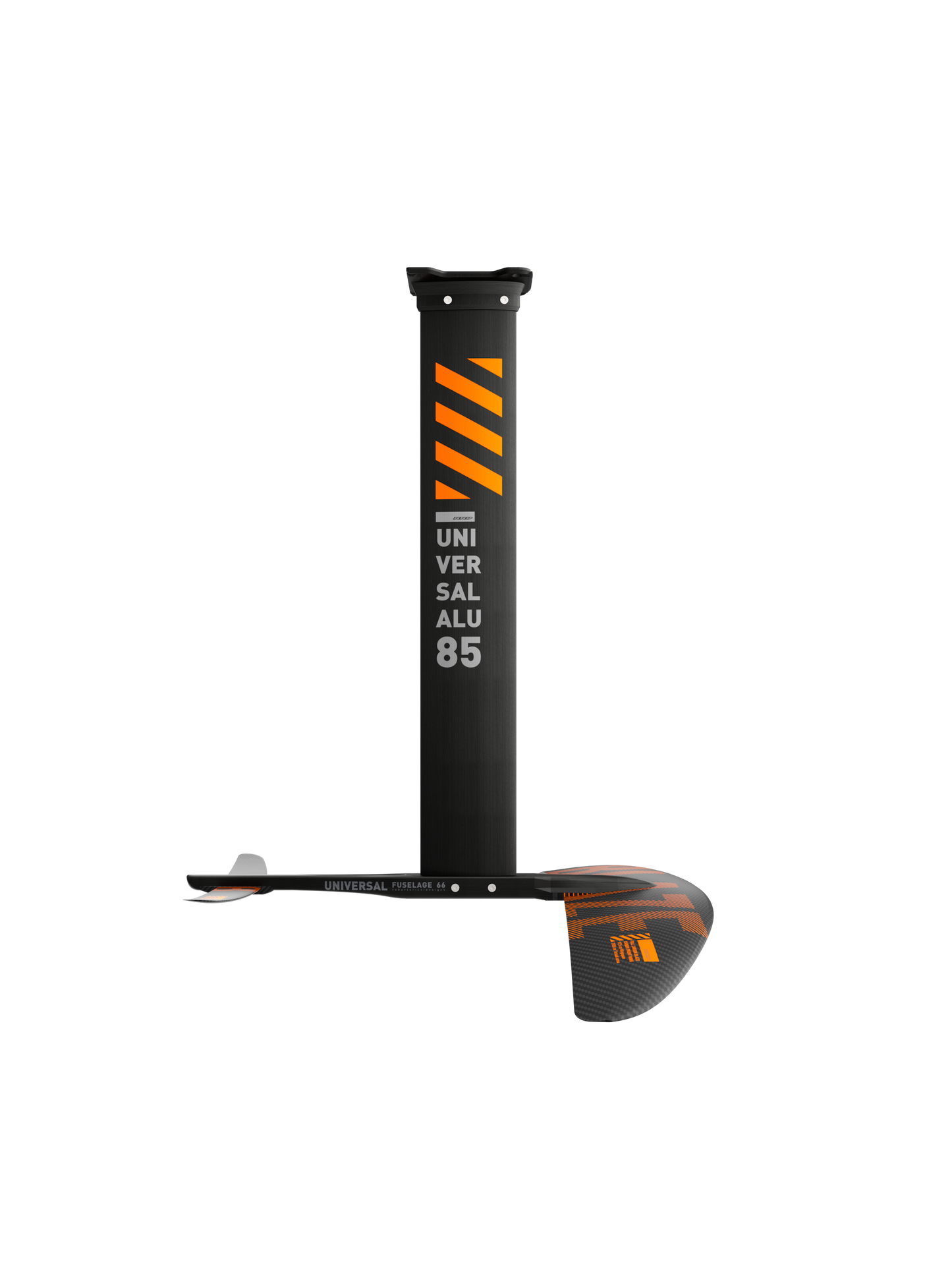

| BLAZE 1850 ALU FOIL SET Y27 |
85 cm | 76 cm | Wing span 103.5 cms / wing area 1850 cm² | Wing span 45 cms / wing area 250 cm² | 27BLAF1850S |
| BLAZE 1550 ALU FOIL SET Y27 |
85 cm | 76 cm | Wing span 97.5 cms / wing area 1550 cm² | Wing span 41 cms / wing area 215 cm² | 27BLAF1550S |
| BLAZE 1250 ALU FOIL SET Y27 |
85 cm | 66 cm | Wing span 86.5 cms / wing area 1250 cm² | Wing span 41 cms / wing area 215 cm² | 27BLAF1250S |
| BLAZE 950 ALU FOIL SET Y27 |
85 cm | 66 cm | Wing span 79 cms / wing area 950 cm² | Wing span 38 cms / wing area 195 cm² | 27BLAF950S |
RANGE OF USE
SET OF SCREWS
TECHNOLOGY
In order to increase both lateral and torsional stiffness of the ALU mast, we have redesigned a new mast profile and mould. The new mast now has a maximum thickness of 18mm and its profile is also proportionally thicker towards the trailing edge in order to minimise twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The incorporated top plate is smaller and shorter than the Y25 UNIVERSAL ALU MAST resulting in a lighter weight. The new ALU mast has an unparalleled TWIST of only 2,2 cms, feeling as torsional stiff as a full hi-modulus M40J Carbon mast !!!
FOIL TECH SPECS
MAST
The new wider profile and stiffer Universal ALU mast with integrated plate is the top combination for speed potential and superior control. The aluminum plate has been optimized in dimension and integrated into the aluminum mast using new 8 mm diameter screws and 6 mm sideways telescope screws to obtain a 100% solid connection. This mast is 15% lighter and stiffer both in flex and torsion, compared to his predecessor. It has a maximum thickness of 18mm and its profile is designed to minimize twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The mast is now waterproof.
FRONT AND REAR WINGS LAYUP
The new full carbon BLAZE is our new concept of hi performance front wing. We have worked on an improved profile to achieve maximum efficiency and glide. Due to its reduced thickness and chord you get more control at higher speed, coupled with the new Blaze carbon rear wing you gain a pure performance foil. The Blaze is the first choice for our World Cup riders due to its unique acceleration and maneuverability.
REMOVABLE PLATE CONNECTOR / WING CONNECTION
The new Universal fuselage has an extra wide head area to carry and support super wide wings (up to 120 cms wingspan and 2500 sqcms) and entirely redesigned for maximum lightweight. Its new wider middle and front section design can sustain higher flex pressure and torsion pressure from the input of the mast and front wing and offers an improved level of stiffness. Lighter and stiffer!
MAST FUSELAGE CONNECTION
New 8mm diameter Torx screws for mast, fuselage and wings has improved connectivity to improve in stiffness and for more user friendly assembly / disassembly. The new 6 mm sideways telescope screws secure the fuselage to the mast and avoid any risk of loss.
No more damaged screw heads and threads!
MAST FUSELAGE CONNECTION
The new mast foot adaptor Y26 design is now wider for improved lateral stiffness, securing a “one welded piece“ feeling between fuselage and mast. Hi density Plastic connector/adaptors to avoid oxidation between mast and fuselage connection. 2 x 8mm diameter torx and 2 x 6 mm sideways telescope screws for a reliable, strong and quick connection.
FOIL SET BAG (sold separately)
Our new foil set bag 120 can fit any set and parts of our complete Y26 Hydrofoil collection.
There are velcro attachments that will fit and lock every part inside its padded cover so every component of any size will be secure and not move inside the bag.
