UNIVERSAL MANTARAY FOIL SET Y30

UNIVERSAL MANTARAY FOIL SET Y30

FREERIDE / WAVE

€2.179,00
€2.179,00
Sale Coming Soon
Tax included. Shipping calculated at checkout.
Size
Find a dealer

The Universal Mantaray Foil Set Y30 is built for riders who love to push their limits. Designed for fast, aggressive riding, this foil combines a mid-aspect outline with a carefully shaped foil section and a unique rondure design. The result? Incredible maneuverability, speed, and unmatched ventilation recovery when breaking the surface. With a narrower wingspan per area, the Universal Mantaray delivers lightning-fast roll rate, making it a dream for carving turns. Its foil section is fine-tuned for speed and control, ensuring smooth performance in every condition. The set includes the SWK Carbon Mast, built from 100% M40 Hi-Modulus carbon using unidirectional and biaxial prepreg fibers. This mast guarantees zero flex and torsion, ensuring an ultra-stiff, direct connection that keeps you in full control during even the most aggressive tricks. Whether you’re boosting jumps, ripping through turns, or charging at full speed, this foil will keep up with your most aggressive riding style.

Features

• Construction: 100% M40 Hi-Modulus carbon
• Combination of unidirectional (UD) and biaxial prepreg fibers for zero flex and torsion
• Explosive pop and reactivity
• Fast roll rate control
• Seamless ventilation recovery performance

Recommended

UNIVERSAL PLUS ALU FUSELAGE, UNIVERSAL MANTA RAY FRONT WING, FLOWARCH ADJ REAR WING

Reference

30UNMANSET

View full details

Hydrofoil Users Manual

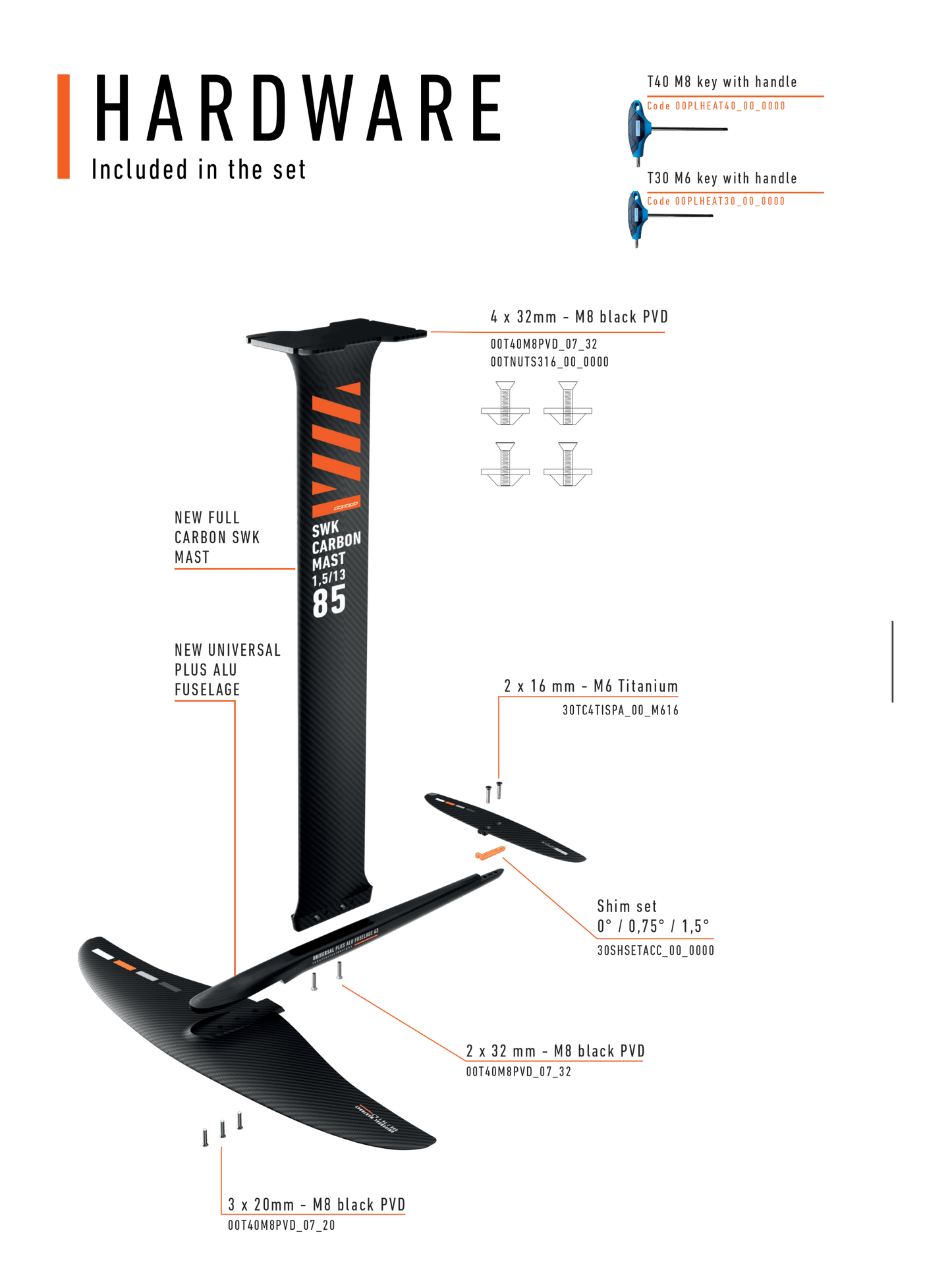

SPECS

1350 - 30UNMANSET_00_1393
Wings Technology Wingspan Area A/R
UNIVERSAL MANTA RAY FRONT WING 1350 Full Carbon 93 Cm 1350 Cm² 6,7
FLOWARCH REAR WING ADJ 220 Full Carbon 40 Cm 220 Cm² 6,6
Components Technology Length Max chord Max thickness
SWK CARBON MAST 85 / 1,5 / 13 Full Carbon 85 Cm 13 Cm 15 mm
UNIVERSAL PLUS ALU FUSELAGE 63 Alu 63 Cm – –
SHIM SET 0° / 0,75° / 1,5° Plastic
1050 - 30UNMANSET_00_1084
Wings Technology Wingspan Area A/R
UNIVERSAL MANTA RAY FRONT WING 1050 Full Carbon 84 Cm 1050 Cm² 6,7
FLOWARCH REAR WING ADJ 190 Full Carbon 36 Cm 190 Cm² 6,7
Components Technology Length Max chord Max thickness
SWK CARBON MAST 85 / 1,5 / 13 Full Carbon 85 Cm 13 Cm 15 mm
UNIVERSAL PLUS ALU FUSELAGE 63 Alu 63 Cm – –
SHIM SET 0° / 0,75° / 1,5° Plastic – – –
850 - 30UNMANSET_00_8576
Wings Technology Wingspan Area A/R
UNIVERSAL MANTA RAY FRONT WING 850 Full Carbon 76 Cm 850 Cm² 6,7
FLOWARCH REAR WING ADJ 170 Full Carbon 33 Cm 170 Cm² 6,5
Components Technology Length Max chord Max thickness
SWK CARBON MAST 85 / 1,5 / 13 Full Carbon 85 Cm 13 Cm 15 mm
UNIVERSAL PLUS ALU FUSELAGE 60 Alu 60 Cm – –
SHIM SET 0° / 0,75° / 1,5° Plastic – – –
