SPECS
| MODEL | MAST | FUSELAGE | FRONT WING | REAR WING | ART CODE |
|---|---|---|---|---|---|

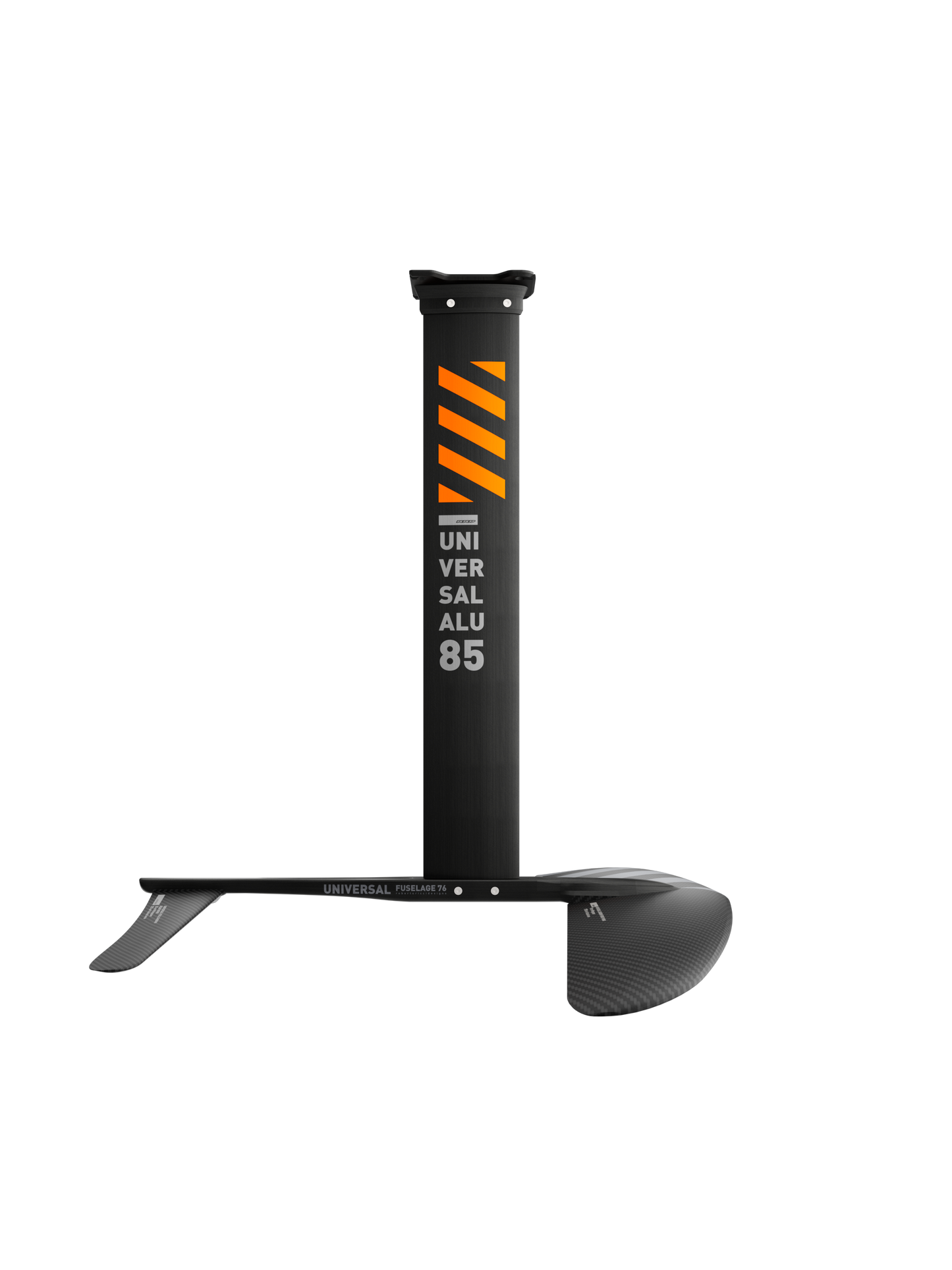

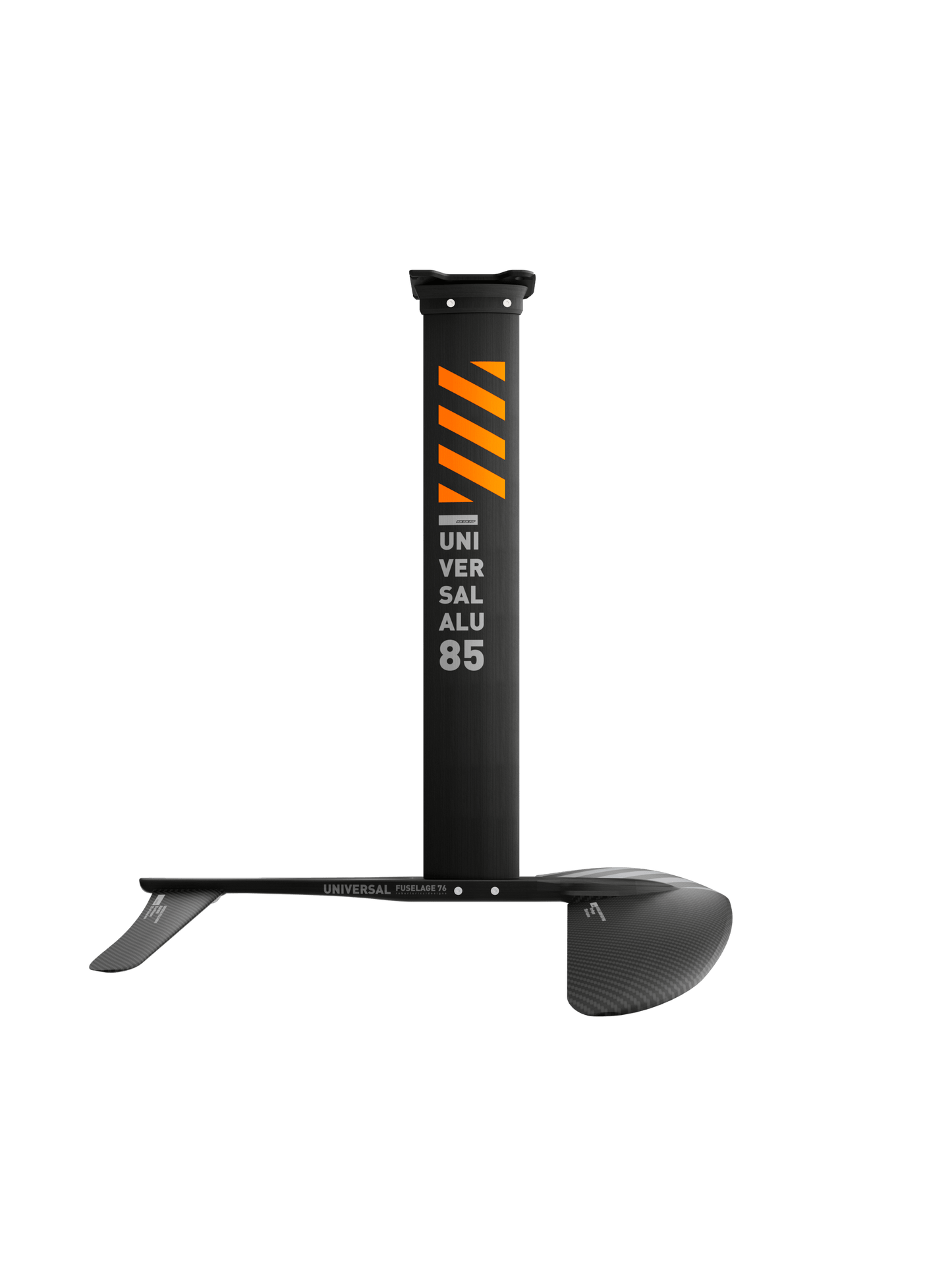

| UNIVERSAL SW ALU 2400 / 75 Y27 | 75 cm | 76 cm | Wing span 110 cms / wing area 2400 cm² | Wing span 52 cms / wing area 373 cm² | 27USWF240075S |
| MODEL | MAST | FUSELAGE | FRONT WING | REAR WING | ART CODE |
|---|---|---|---|---|---|
| UNIVERSAL SW ALU 2400 / 85 Y27 | 85 cm | 76 cm | Wing span 110 cms / wing area 2400 cm² | Wing span 52 cms / wing area 373 cm² | 27USWF240085S |
RANGE OF USE
TECHNOLOGY
In order to increase both lateral and torsional stiffness of the ALU mast, we have redesigned a new mast profile and mould. The new mast now has a maximum thickness of 18mm and its profile is also proportionally thicker towards the trailing edge in order to minimise twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The incorporated top plate is smaller and shorter than the Y25 UNIVERSAL ALU MAST resulting in a lighter weight. The new ALU mast has an unparalleled TWIST of only 2,2 cms, feeling as torsional stiff as a full hi-modulus M40J Carbon mast !!!
FOIL TECH SPECS
MAST
The new wider profile and stiffer Universal ALU mast with integrated plate is the top combination for speed potential and superior control. The aluminum plate has been optimized in dimension and integrated into the aluminum mast using new 8 mm diameter screws and 6 mm sideways telescope screws to obtain a 100% solid connection. This mast is 15% lighter and stiffer both in flex and torsion, compared to his predecessor. It has a maximum thickness of 18mm and its profile is designed to minimize twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The mast is now waterproof.
FRONT AND REAR WINGS LAYUP
The Universal carbon front wing is designed to start flying at lower speeds. Due to its increased thickness you get the right lift to take off easily and the stability you need to learn your first jibes. The Universal carbon rear wing with negative dihedral (anhedral) is designed to avoid surface turbulences during turns. It also supports you with pumping the board with your feet.
REMOVABLE PLATE CONNECTOR / WING CONNECTION
The new Universal fuselage has an extra wide head area to carry and support super wide wings (up to 120 cms wingspan and 2500 sqcms) and entirely redesigned for maximum lightweight. Its new wider middle and front section design can sustain higher flex pressure and torsion pressure from the input of the mast and front wing and offers an improved level of stiffness. Lighter and stiffer!
MAST FUSELAGE CONNECTION
New 8mm diameter Torx screws for mast, fuselage and wings has improved connectivity to improve in stiffness and for more user friendly assembly / disassembly. The new 6 mm sideways telescope screws secure the fuselage to the mast and avoid any risk of loss.
No more damaged screw heads and threads!
MAST FUSELAGE CONNECTION
The new mast foot adaptor Y26 design is now wider for improved lateral stiffness, securing a “one welded piece“ feeling between fuselage and mast. Hi density Plastic connector/adaptors to avoid oxidation between mast and fuselage connection. 2 x 8mm diameter torx and 2 x 6 mm sideways telescope screws for a reliable, strong and quick connection.
FOIL SET BAG (sold separately)
Our new foil set bag 120 can fit any set and parts of our complete Y26 Hydrofoil collection.
There are velcro attachments that will fit and lock every part inside its padded cover so every component of any size will be secure and not move inside the bag.
