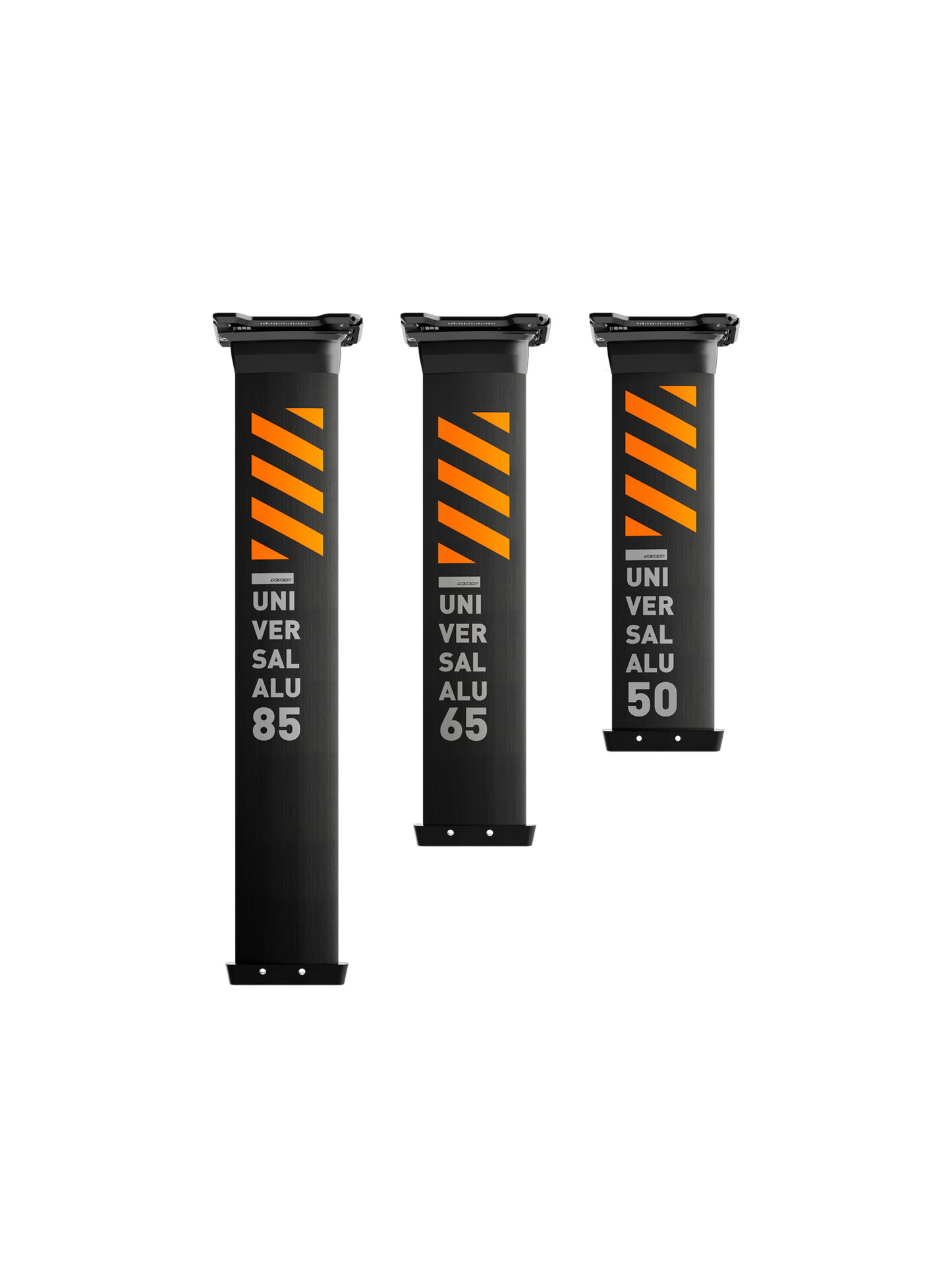

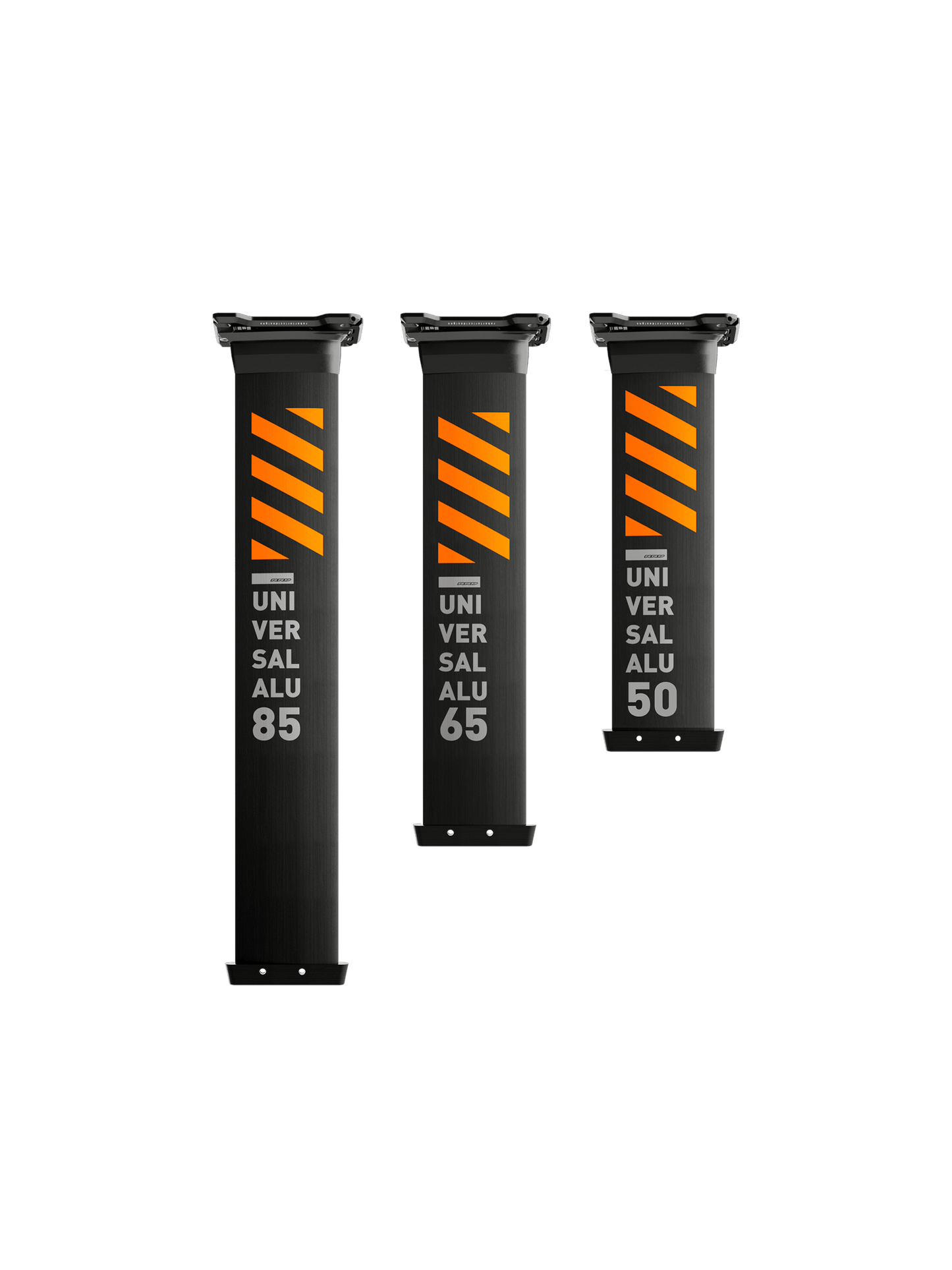

QUICKLOCK UNIVERSAL ALU MAST Y28

QUICKLOCK UNIVERSAL ALU MAST Y28

SURF / SUP /WING / KITE HYDROFOIL MAST

€419,00
€419,00
Sale Coming Soon
Tax included. Shipping calculated at checkout.
Size
Find a dealer

Spend more time on the water and less time rigging with the new Quicklock Universal Alu Mast. This revolutionary and practical system allows you to quickly fit the hydrofoil with only ONE screw. Installing the low-profile Quicklock plate on your board also keeps your ideal setup for each and every session, ensuring your foil is placed perfectly every time. Solid design construction guarantees no lateral or axial movement for a smooth ride. Have more than one board? You can install a Quicklock plate on each to swap your foil in record time. The Quicklock plate is patent pending.

Included

Quicklock plate
UNIVERSAL ALU MAST
Comes with an EVA cover with velcro to fasten it inside the bag

Reference

28QUNALMAS

View full details

How to secure the hydrofoil to the board:

Take your assembled Universal alu mast and insert it into the Quicklock plate.

Fix your assembled Universal alu mast to the Quicklock plate using  the 8mm screw.

HOW TO VIDEOS

SPECS

MODEL TECHNOLOGY LENGTH MAX CHORD MAX THICKNESS ART CODE
QUICKLOCK UNIVERSAL ALU MAST 85 Aluminium 85 cm 13.5 cm 17 mm 28QLUAM85
QUICKLOCK UNIVERSAL ALU MAST 65 Aluminium 65 cm 13.5 cm 17 mm 28QLUAM65
QUICKLOCK UNIVERSAL ALU MAST 50 Aluminium 50 cm 13.5 cm 17 mm 28QLUAM50

UNIVERSAL ALU MAST TECHNOLOGY

In order to increase both lateral and torsional stiffness of the ALU mast, we have redesigned a new mast profile and mould. The new mast now has a maximum thickness of 18mm and its profile is also proportionally thicker towards the trailing edge in order to minimise twist. We have also introduced a new middle stringer structure in between the two screws that have allowed a higher lateral stiffness. The incorporated top plate is smaller and shorter than the Y25 UNIVERSAL ALU MAST resulting in a lighter weight. The new ALU mast has an unparalleled TWIST of only 2,2 cms, feeling as torsional stiff as a full hi-modulus M40J Carbon mast !!!
