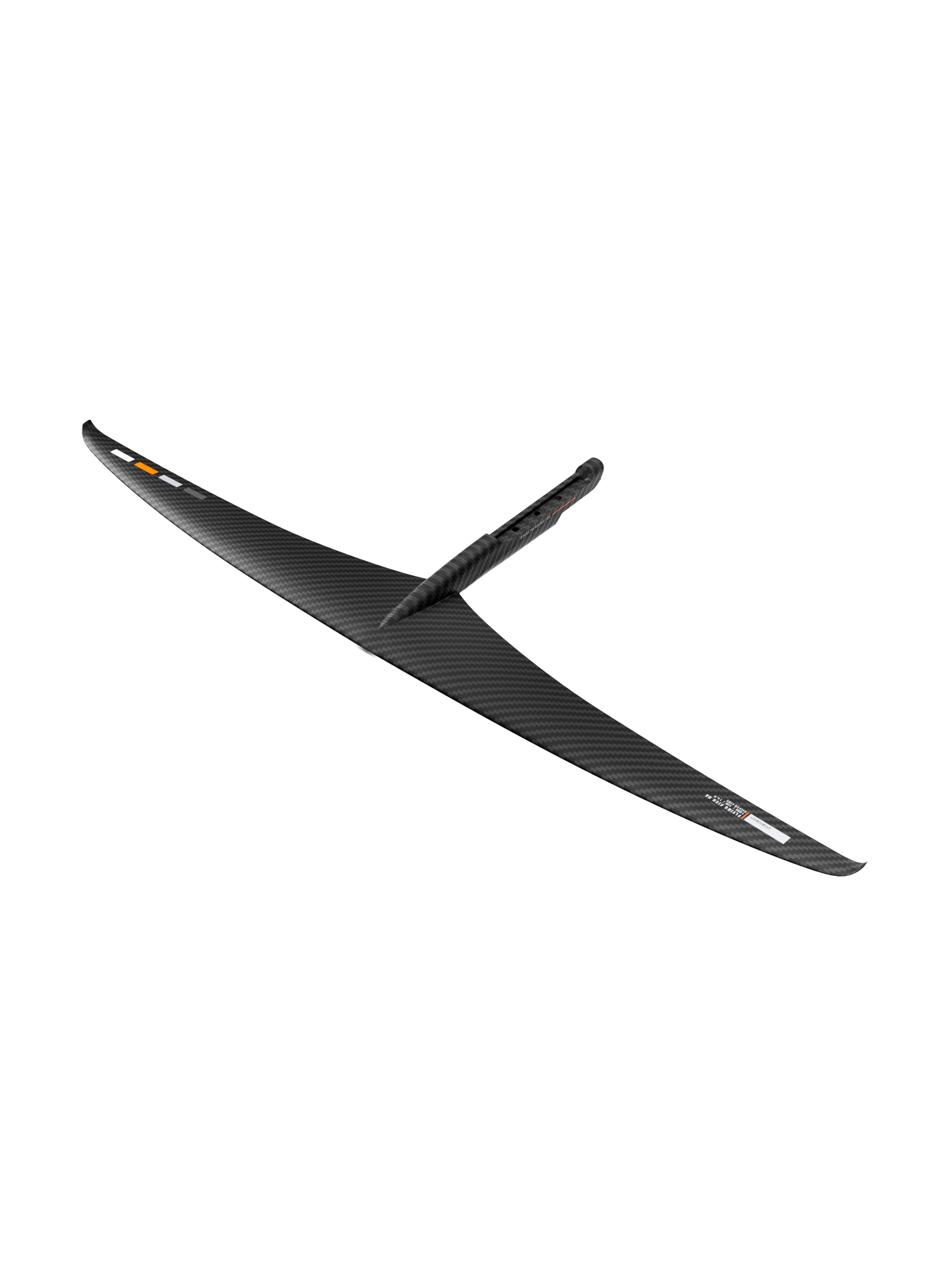

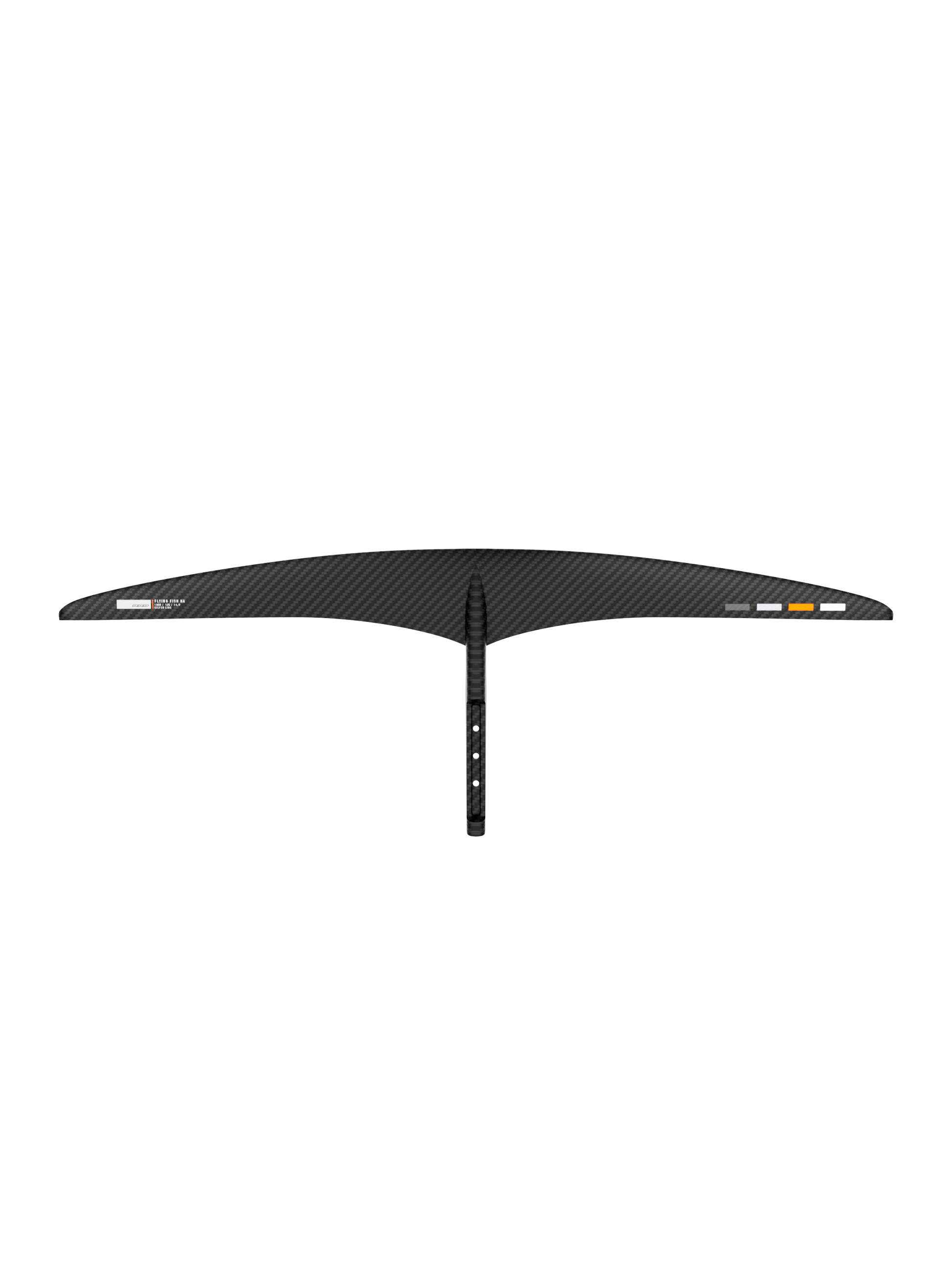

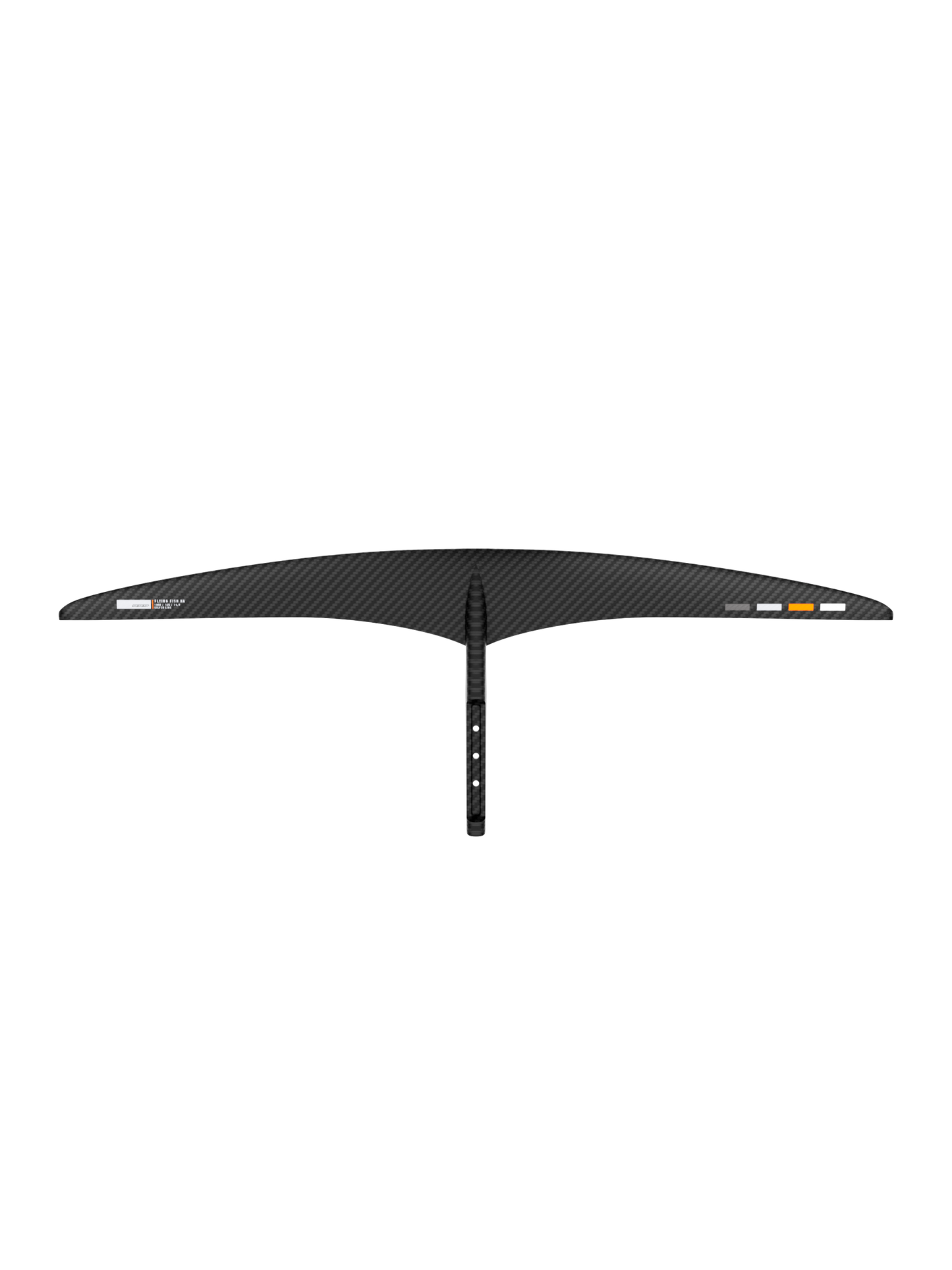

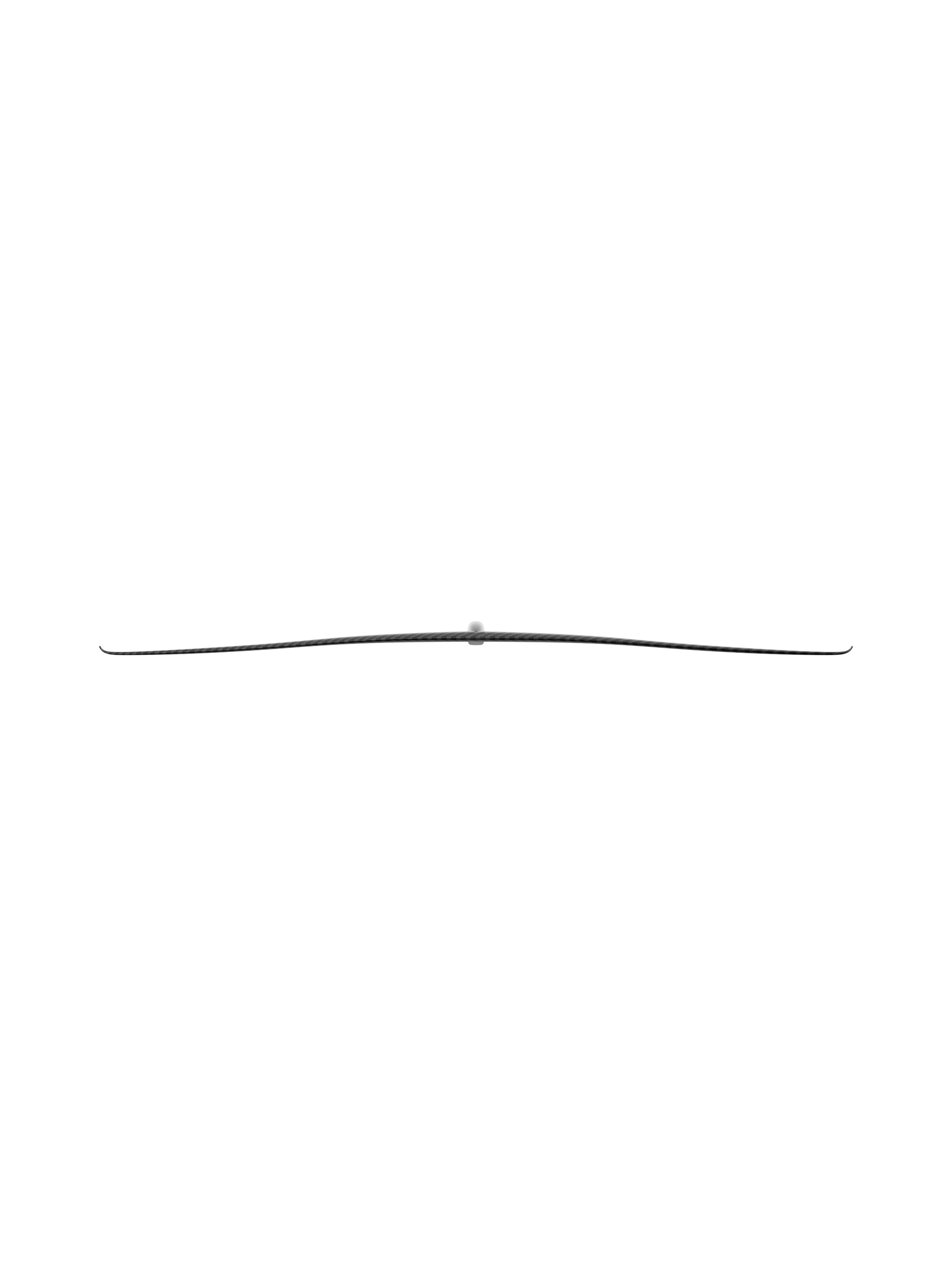

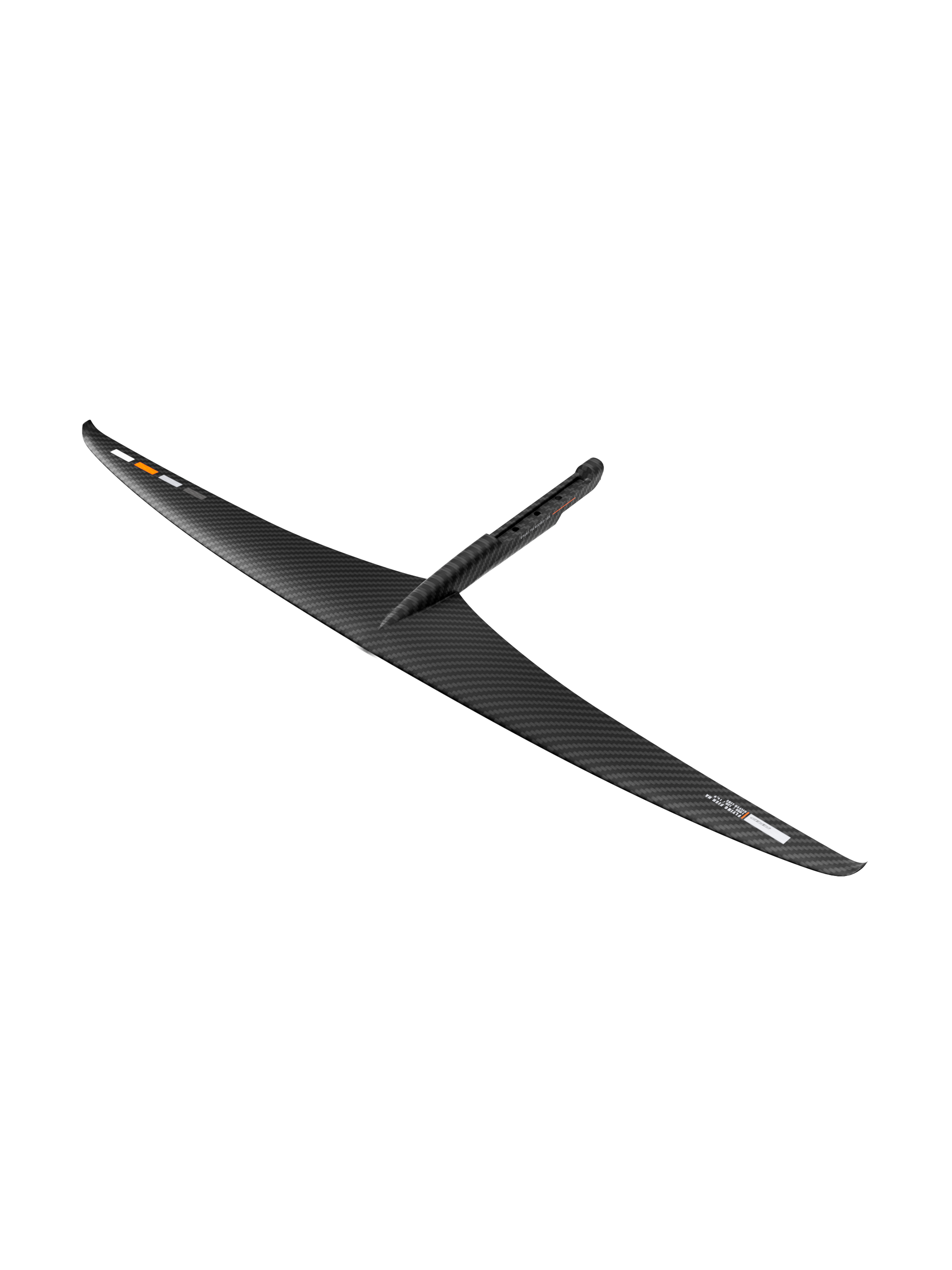

FLYING FISH HA FRONT WING Y31

FLYING FISH HA FRONT WING Y31

HIGH ASPECT DOWNWIND FRONT WING

€779,00
€779,00
Sale Currently unavailable
Tax included. Shipping calculated at checkout.
Size
Find a dealer

The FLYING FISH HA FRONT WING Y31 is RRD's high aspect ratio front wing, built for riders who want to push their downwind sessions to the next level. With an aspect ratio above 14, a foil profile optimized for glide efficiency and its unique full 40 and 60 MJ high modulus carbon prepreg construction the FLYING FISH HA FRONT WING Y31 delivers an unmatched combination of endless glide, efficient pumping and responsive carving thanks to its special stifness . Available in three sizes — 750, 900 and 1050 cm² - it covers a complete range from fast, openocean downwind runs to light wind pump-and-glide sessions.

Features

• Extreme aspect ratio, endless glide
• Optimized airfoil shape
• Prepreg carbon construction
• Light, balanced, precise

Reference

31FLFHAFRW

View full details

- SPECS -

MODEL AREA SPAN AR WEIGHT ARTICLE CODE
FLYING FISH HA FRONT WING Y31 - 750 750 cm² 105 cm 14.7 0.96 kg 31FLFHAFRW_ 00_750
FLYING FISH HA FRONT WING Y31 - 900 900 cm² 115 cm 14.7 1.18 kg 31FLFHAFRW_ 00_900
FLYING FISH HA FRONT WING Y31 - 1050 1050 cm² 125 cm 14.9 1.50 kg 31FLFHAFRW_ 00_1050
Rider: Advanced
Disciplines: Downwind

  • EXTREME ASPECT HI RATIO

    Extreme hi aspect ratio, endless glide, with an AR between 14.7 and 14.9, the Flying Fish HA is engineered to generate lift with minimal drag. Every pump translates into forward distance covered, every bump becomes an opportunity for extended flight. Whether you are linking swells on a downwind run or hunting the perfect glide on a light wind session, this wing keeps you high and fast.

  • OPTIMIZED AIRFOIL SHAPE

    The hydrodynamic profile is tuned to maximize lift-to-drag efficiency across the full span. The tip geometry — thin profile with a controlled curvature — minimizes drag at hi speed and prevents ventilation even during aggressive rail-to-rail transitions.

  • PREPREG HI MODULUS CARBON CONSTRUCTION

    Because of the high aspect ratio, the layup has been at the core of this project from the start. MJ40 and MJ60 carbon at 0° and ±45° orientation are combined to handle bending and torsional loads, with additional  unidirectional high-modulus reinforcements on the critical areas. The result is an exceptionally stiff wing that responds instantly to rider input, with zero noticeable flex, even in hard carving turns under full load.

  • LIGHT, BALANCED, PRECISE

    The Flying Fish HA weighs between 0.96 and 1.50 kg depending on size, delivering an unmatched weight-to-performance ratio.

1 4

- SYSTEM COMPATIBILITY -

Matching Fuselage & Rear Wing to Front Wing

All Dynamic Pro System components share a common connection standard and are fully interchangeable within the range. The table below provides a recommended guide for matching fuselage length and rear wing choice to front wing size and discipline.

FRONT WING FUSELAGE REAR WING DISCIPLINE
Flying Fish HA 750–900-1050 Dynamic Pro Rear Fuselage 20 - 23 Flowarch Adj Rear Wing - Flowarch Rear Wing G10 Hi Performance Downwind
Spinner Pro 530–650-780 Dynamic Pro Rear Fuselage 20 - 23 Flowarch Adj Rear Wing - Flowarch Rear Wing G10 Freestyle
All Dynamic Pro System components are designed and tested together. Mixing fuselage lengths and rear wing options within the range is encouraged — fine-tuning your setup is part of the Dynamic Pro System experience.
