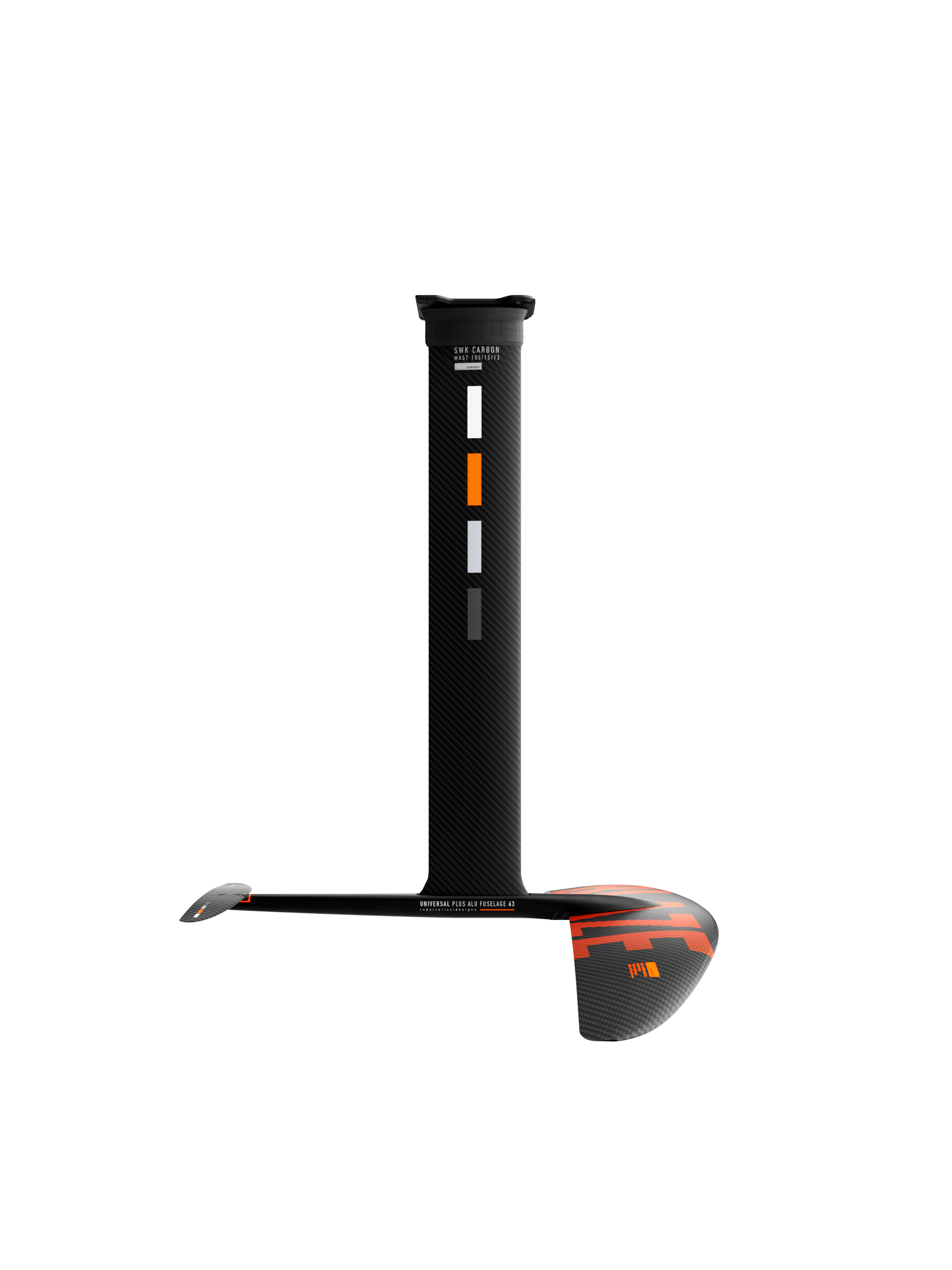

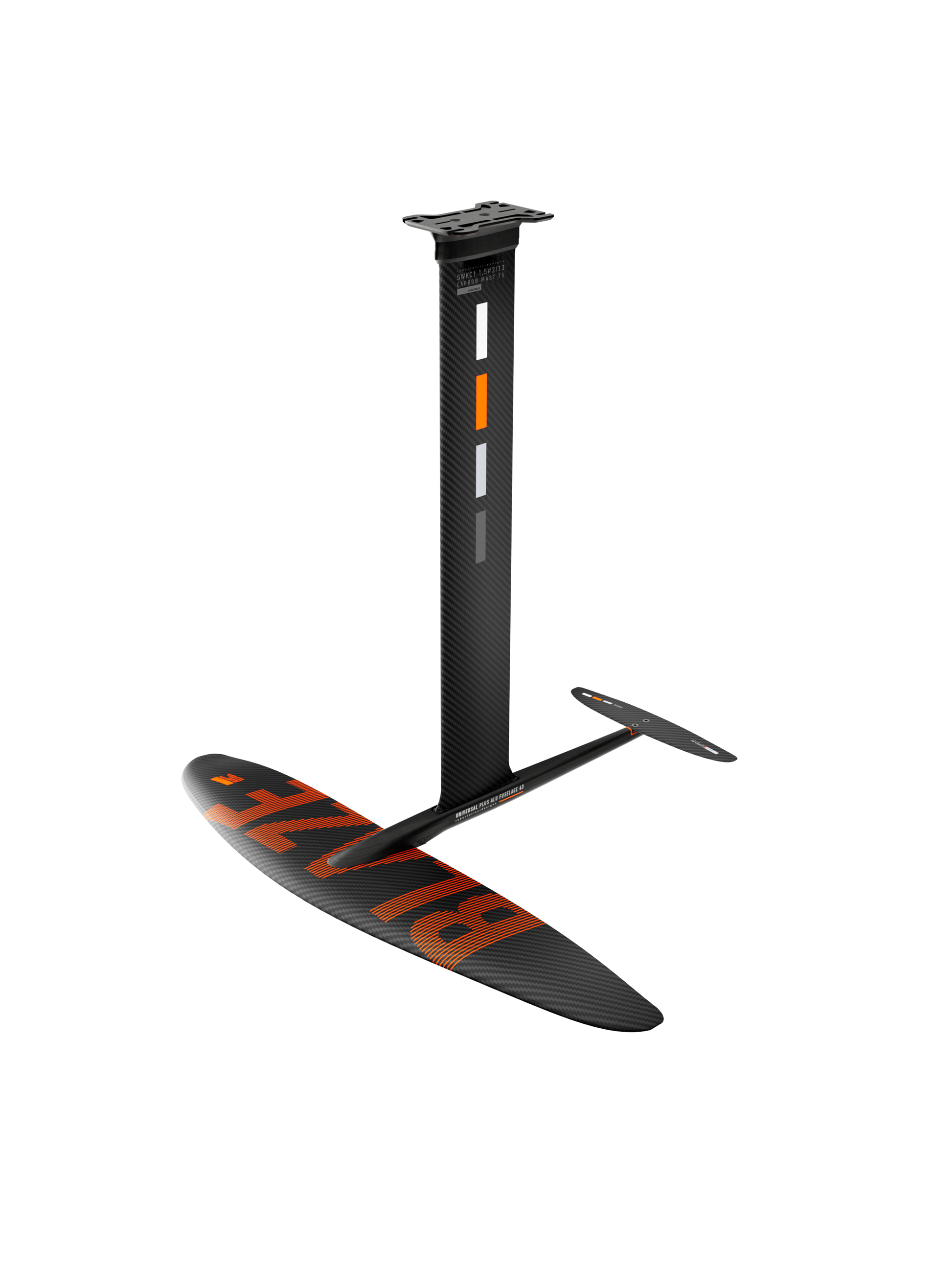

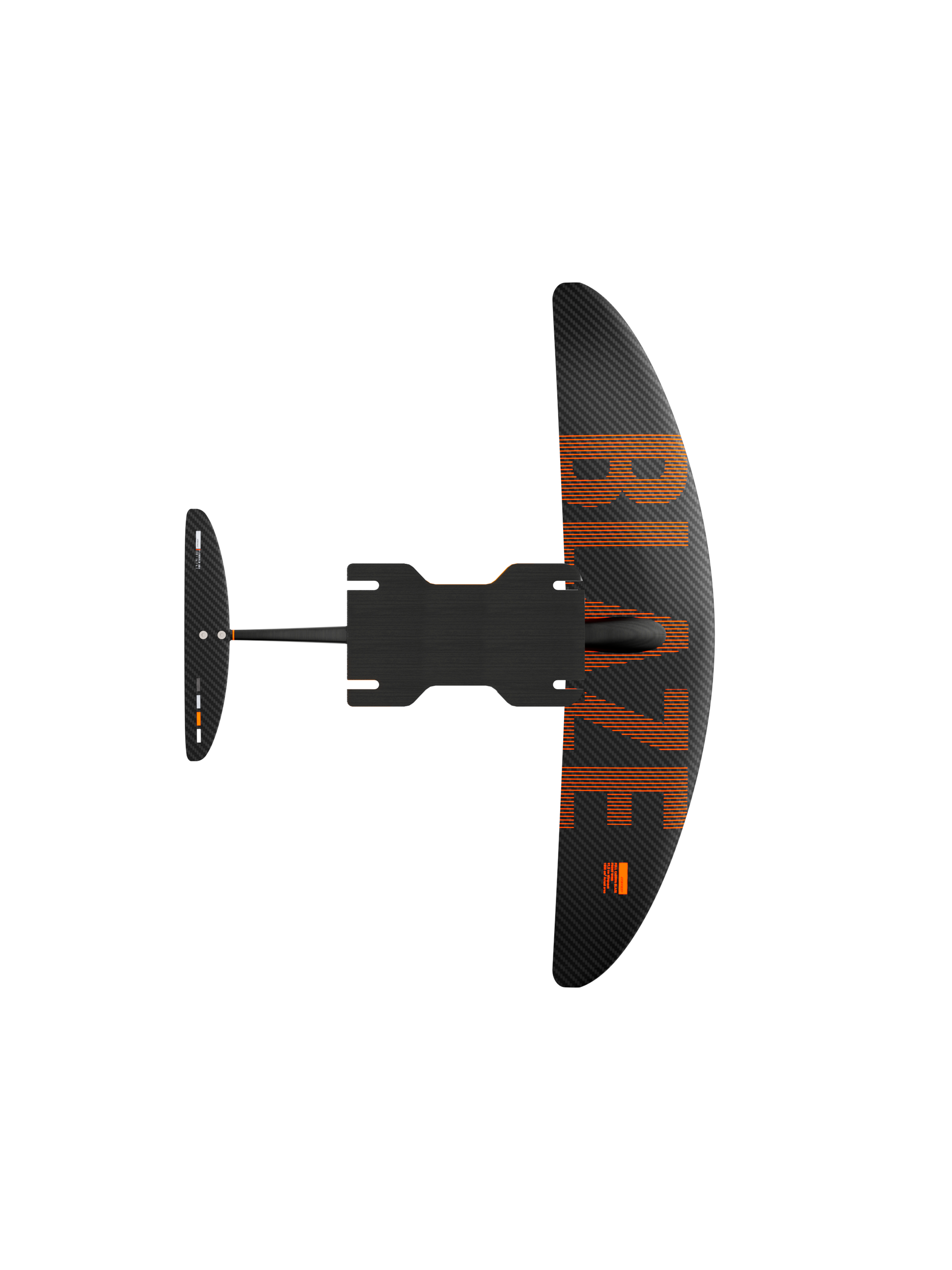

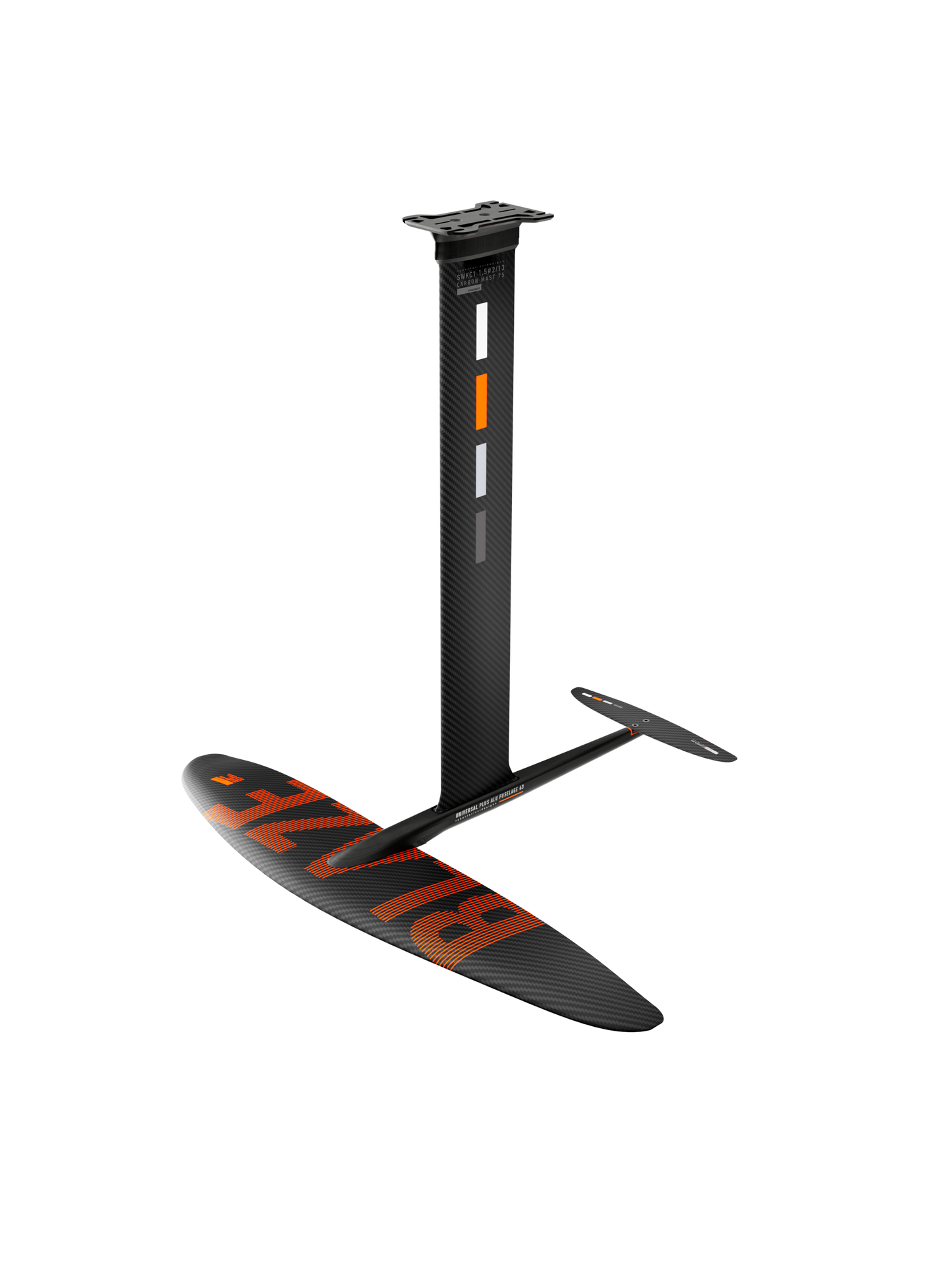

BLAZE LTD CARBON FOIL SET Y30
BLAZE LTD CARBON FOIL SET Y30
FREERIDE
Couldn't load pickup availability
The Blaze LTD Carbon Foil Set Y30 brings the evolution of foiling to the next level, delivering an unmatched combination of efficiency, glide, and control. Designed for freeride performance across both wing and kite foiling, it allows you to ride effortlessly and push your limits in all conditions. At the heart of this setup is the Blaze Carbon Front Wing, which defines a new era of high-performance foiling. With its refined profile, reduced thickness and chord, and a 6.5 aspect ratio, it achieves the perfect balance between speed, glide, and maneuverability. The Blaze’s precise hydrodynamic shape ensures smooth control at high speed and outstanding agility while carving or accelerating. The set comes equipped with the SWK Carbon Mast, built from 100% M40 Hi-Modulus carbon using unidirectional and biaxial prepreg fibers. This construction guarantees zero flex and torsion, delivering an ultra-stiff, direct connection between rider and foil for total control and confidence. Matched with a light and proven fuselage-to-mast system, the Blaze LTD Carbon Foil Set Y30 provides the ideal compromise between stiffness, lightness, and reactivity, making it the ultimate choice for riders who want effortless speed, precision, and glide.
Features
Features
• Construction: 100% M40 Hi-Modulus carbon
• Combination of unidirectional (UD) and biaxial prepreg fibers for zero flex and torsion
• Exceptional carving capabilities combined with impressive speed
• Pure and versatile front wing for wing, surf, and kite foiling
Technology
Technology

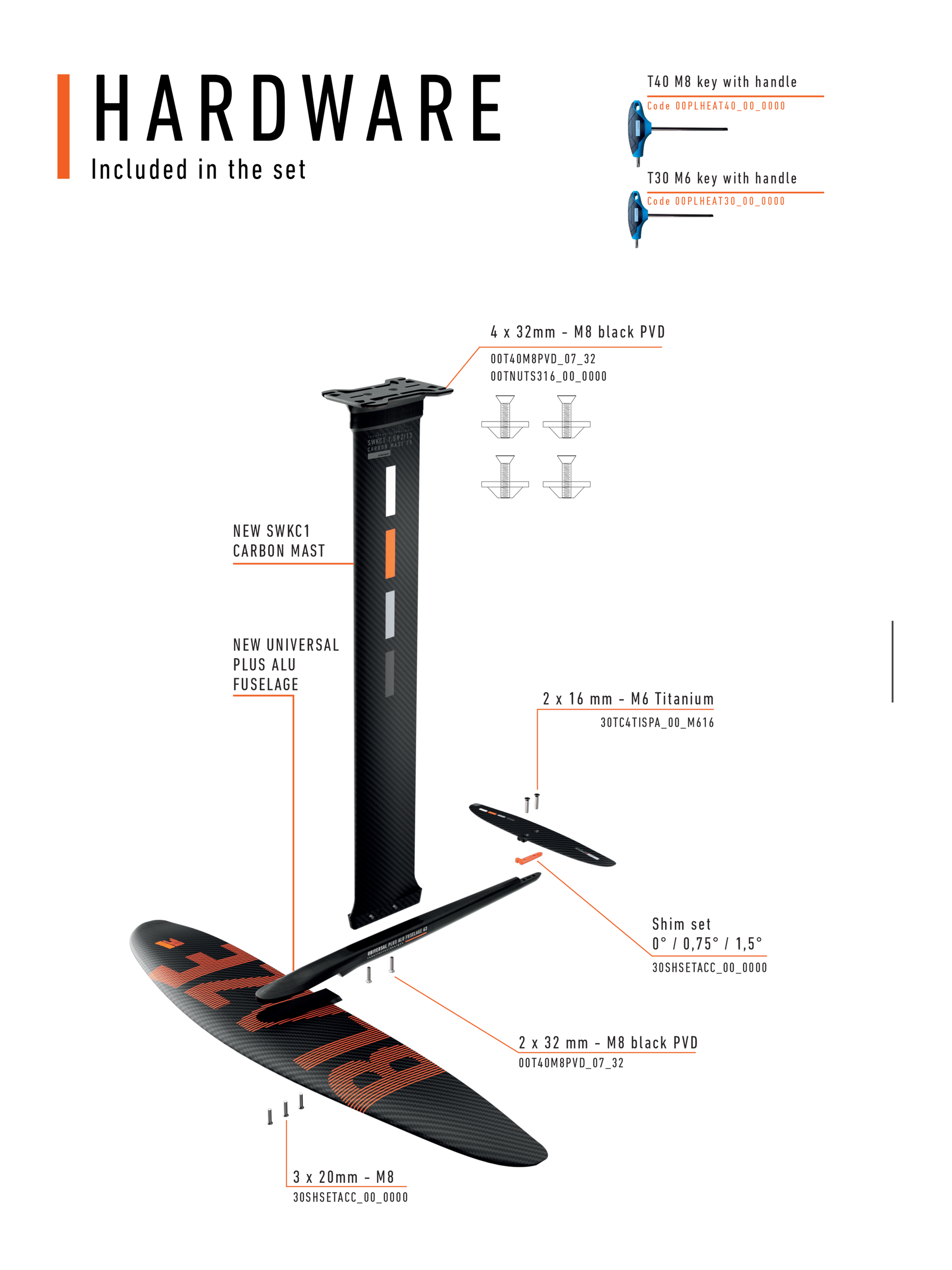

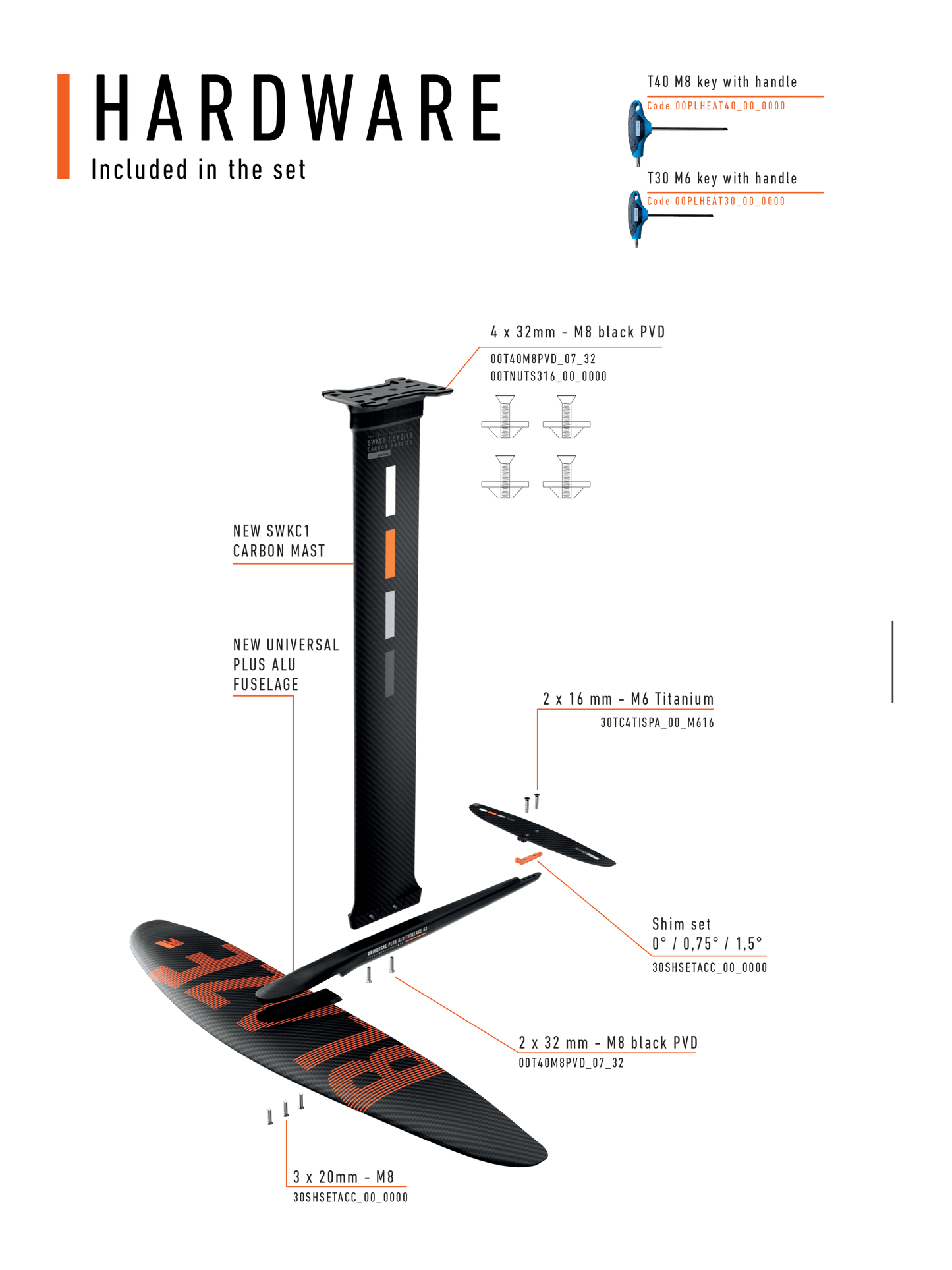

NEW SET WITH CARBON MAST AND ADJ REAR WING
Recommended
Recommended
UNIVERSAL ALU MAST, UNIVERSAL ALU FUSELAGE, BLAZE FRONT WING, BLAZE LTE FRONT WING, BLAZE REAR WING
Reference
Reference
30BLCFSLTD
Share

Collapsible content
SPECS
| Wings | Technology | Wingspan | Area | A/R |
|---|---|---|---|---|
| BLAZE CARBON FRONT | Full Carbon | 97,5 Cm | 1550 Cm² | 6.1 |
| FLOWARCH REAR WING ADJ | Full Carbon | 40 Cm | 220 Cm² | 7.2 |
| Components | Technology | Length | Max chord | Max thickness |
|---|---|---|---|---|
| SWKC1 MAST 1,5/13/85 Y30 | Carbon | 85 Cm | 13 Cm | 15 mm |
| UNIVERSAL PLUS ALU FUSELAGE 63 | Alu | 63 Cm | – | – |
| Wings | Technology | Wingspan | Area | A/R |
|---|---|---|---|---|
| BLAZE CARBON FRONT | Full Carbon | 86 Cm | 1250 Cm² | 5.9 |
| FLOWARCH REAR WING ADJ | Full Carbon | 36 Cm | 190 Cm² | 6.8 |
| Components | Technology | Length | Max chord | Max thickness |
|---|---|---|---|---|
| SWKC1 MAST 1,5/13/85 Y30 | Carbon | 85 Cm | 13 Cm | 15 mm |
| UNIVERSAL PLUS ALU FUSELAGE 63 | Alu | 63 Cm | – | – |
| Wings | Technology | Wingspan | Area | A/R |
|---|---|---|---|---|
| BLAZE CARBON FRONT | Full Carbon | 86 Cm | 1100 Cm² | 6.7 |
| FLOWARCH REAR WING ADJ | Full Carbon | 36 Cm | 190 Cm² | 6.8 |
| Components | Technology | Length | Max chord | Max thickness |
|---|---|---|---|---|
| SWKC1 MAST 1,5/13/85 Y30 | Carbon | 85 Cm | 13 Cm | 15 mm |
| UNIVERSAL PLUS ALU FUSELAGE 63 | Alu | 63 Cm | – | – |
| Wings | Technology | Wingspan | Area | A/R |
|---|---|---|---|---|
| BLAZE CARBON FRONT | Full Carbon | 79 Cm | 950 Cm² | 6.5 |
| FLOWARCH REAR WING ADJ | Full Carbon | 33 Cm | 170 Cm² | 6.4 |
| Components | Technology | Length | Max chord | Max thickness |
|---|---|---|---|---|
| SWKC1 MAST 1,5/13/85 Y30 | Carbon | 85 Cm | 13 Cm | 15 mm |
| UNIVERSAL PLUS ALU FUSELAGE 63 | Alu | 63 Cm | – | – |
