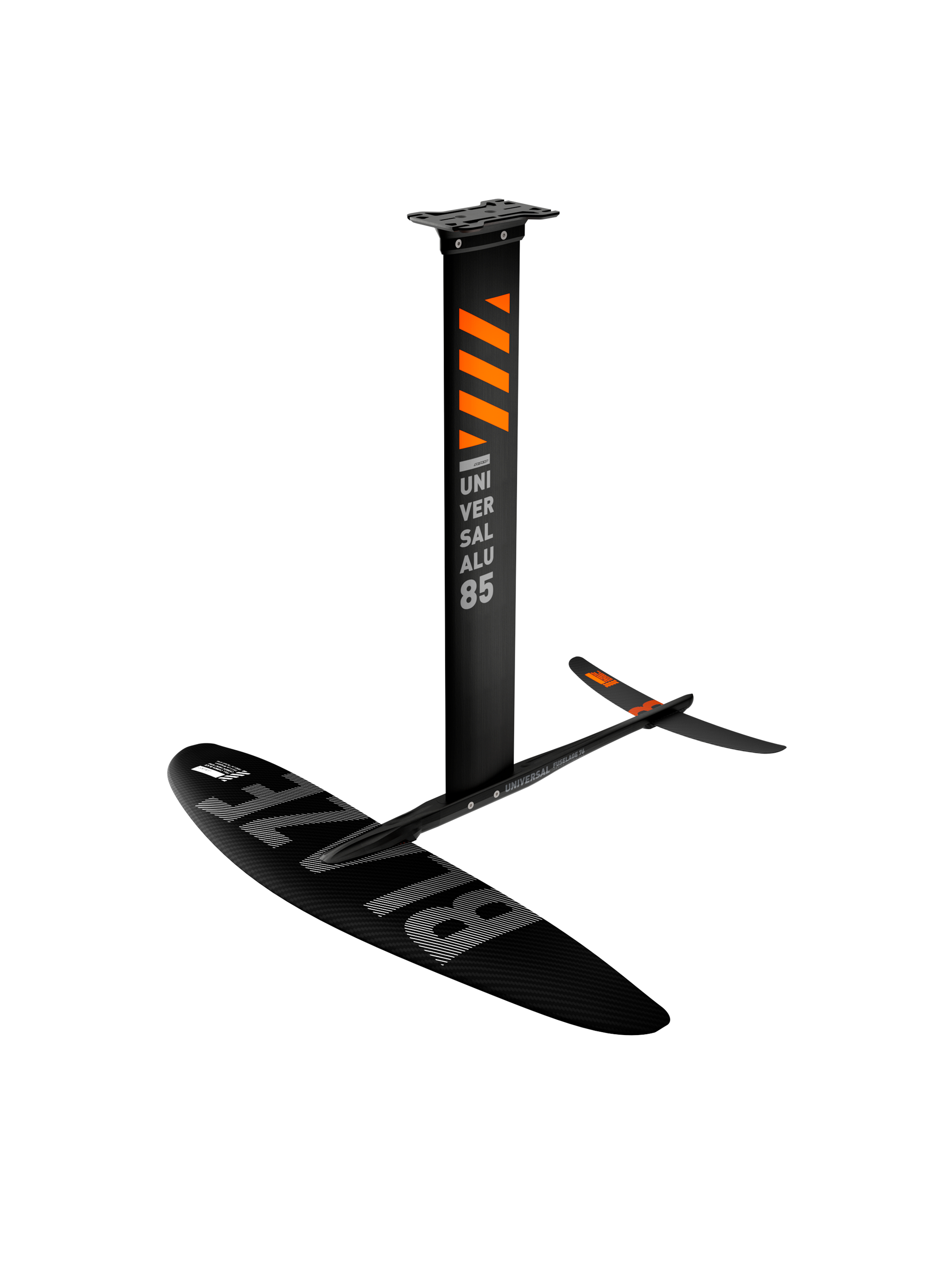

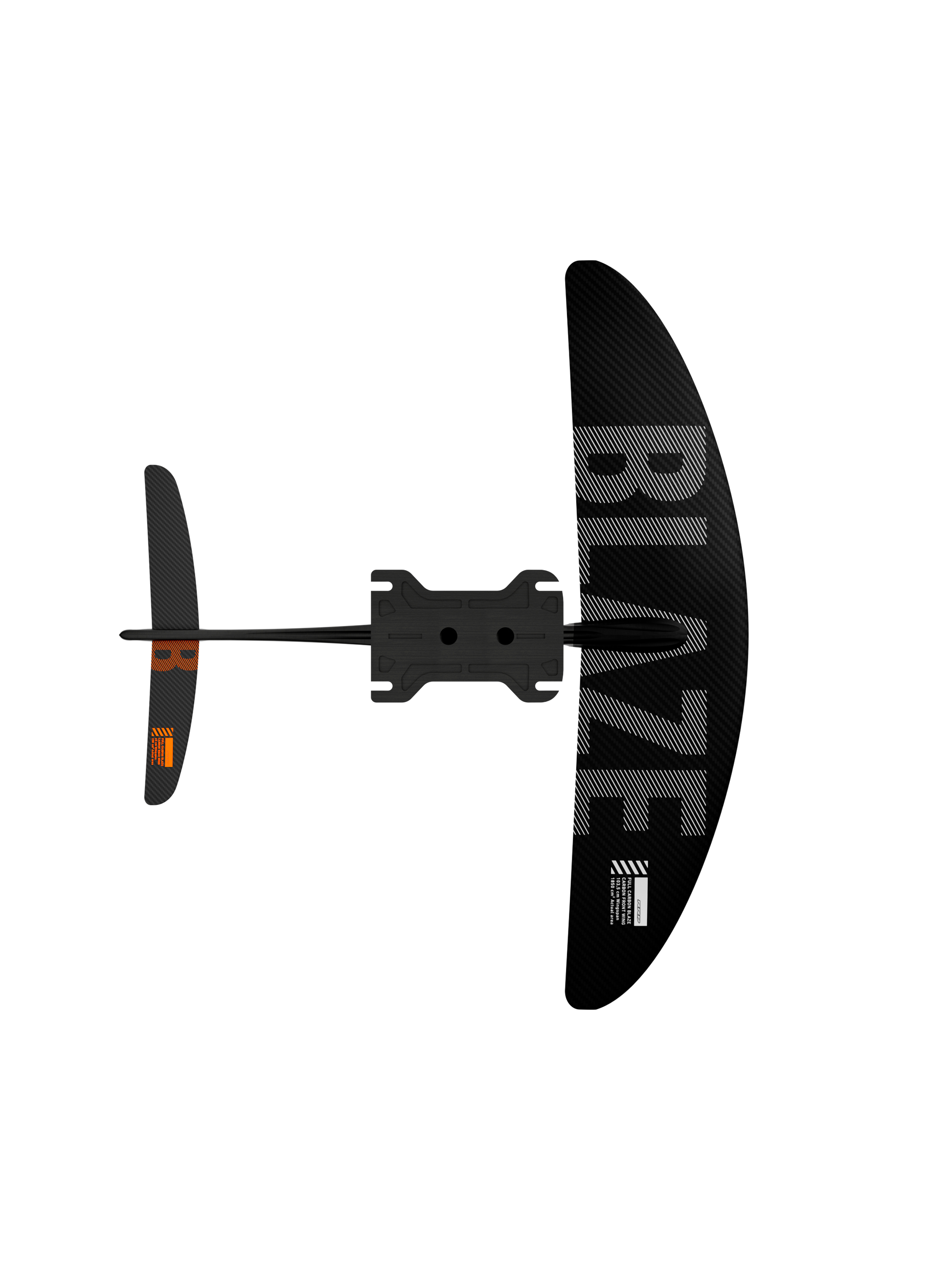

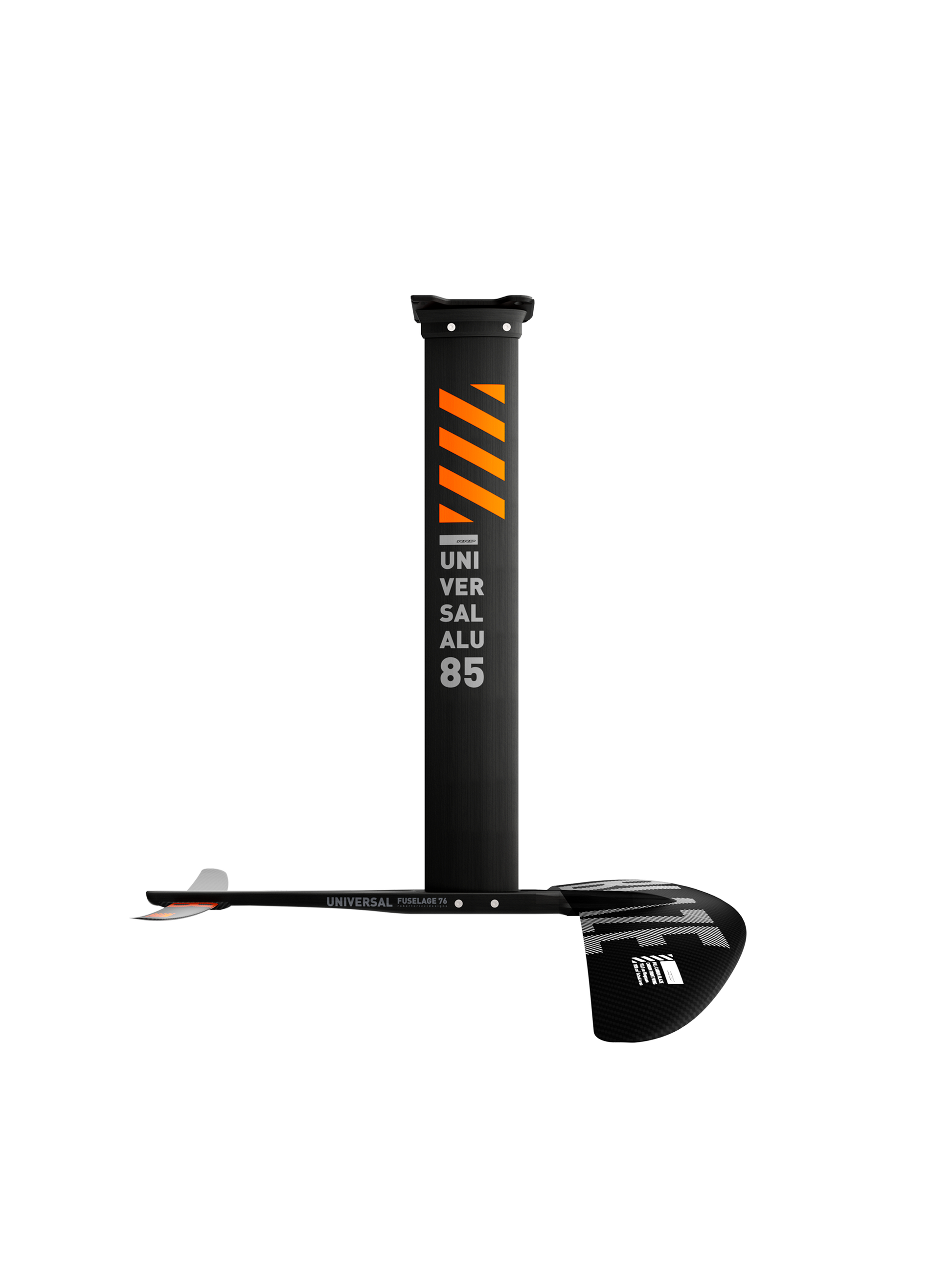

BLAZE LTE FOIL SET Y30

BLAZE LTE FOIL SET Y30

FREERIDE

€1.249,00
€1.249,00
Sale Coming Soon
Tax included. Shipping calculated at checkout.
Size
Find a dealer

The new BLAZE set runs with the evolution of foiling. Its extraordinary efficiency and glide allow you to do everything effortlessly whether it is Wing, or Kite foiling.
The Blaze wings are designed to bring you to the peak of your performance, with a 6.2 average aspect ratio you gain the speed but also the maneuverability you are dreaming of. The new rear wings maximize acceleration and control.
The Blaze wings fit inside a well-tested and proven fuselage to mast system that offers the best compromise of stiffness and lightness.

Features

• EXCELS IN SPEED AND ACCELERATION KEEPING AN EASY TAKE OFF
• EXTRA MANEUVERABLE IN SURF AND FLATWATER

Technology

NEW SET WITH HYBRID FRONT WING

Recommended

UNIVERSAL ALU MAST, UNIVERSAL ALU FUSELAGE, BLAZE FRONT WING, BLAZE LTE FRONT WING, BLAZE REAR WING

Reference

30BLAFSLTE

View full details

Hydrofoil Users Manual
1 3

SPECS

1850 - 30BLAFSLTE_00_1850
Wings Technology Wingspan Area A/R
BLAZE LTE FRONT Hybrid Carbon 103,5 Cm 1850 Cm² 5.7
BLAZE CARBON REAR Full Carbon 45 Cm 250 Cm² 8.1
Components Technology Length Max chord Max thickness
UNIVERSAL ALU MAST Alu 85 Cm 13 Cm 18 mm
UNIVERSAL FUSELAGE Alu 76 Cm – –
1550 - 30BLAFSLTE_00_1550
Wings Technology Wingspan Area A/R
BLAZE LTE FRONT Hybrid Carbon 97,5 Cm 1550 Cm² 6.1
BLAZE CARBON REAR Full Carbon 41 Cm 215 Cm² 7.8
Components Technology Length Max chord Max thickness
UNIVERSAL ALU MAST Alu 85 Cm 13 Cm 18 mm
UNIVERSAL FUSELAGE Alu 76 Cm – –
1250 - 30BLAFSLTE_00_1250
Wings Technology Wingspan Area A/R
BLAZE LTE FRONT Hybrid Carbon 86,5 Cm 1250 Cm² 5.9
BLAZE CARBON REAR Full Carbon 41 Cm 215 Cm² 7.8
Components Technology Length Max chord Max thickness
UNIVERSAL ALU MAST Alu 85 Cm 13 Cm 18 mm
UNIVERSAL FUSELAGE Alu 76 Cm – –
1100 - 30BLAFSLTE_00_1100
Wings Technology Wingspan Area A/R
BLAZE LTE FRONT Hybrid Carbon 86 Cm 1100 Cm² 6.7
BLAZE CARBON REAR Full Carbon 38 Cm 195 Cm² 7.4
Components Technology Length Max chord Max thickness
UNIVERSAL ALU MAST Alu 85 Cm 13 Cm 18 mm
UNIVERSAL FUSELAGE Alu 66 Cm – –
950 - 30BLAFSLTE_00_950
Wings Technology Wingspan Area A/R
BLAZE LTE FRONT Hybrid Carbon 79 Cm 950 Cm² 6.5
BLAZE CARBON REAR Full Carbon 38 Cm 195 Cm² 7.4
Components Technology Length Max chord Max thickness
UNIVERSAL ALU MAST Alu 85 Cm 13 Cm 18 mm
UNIVERSAL FUSELAGE Alu 66 Cm – –
